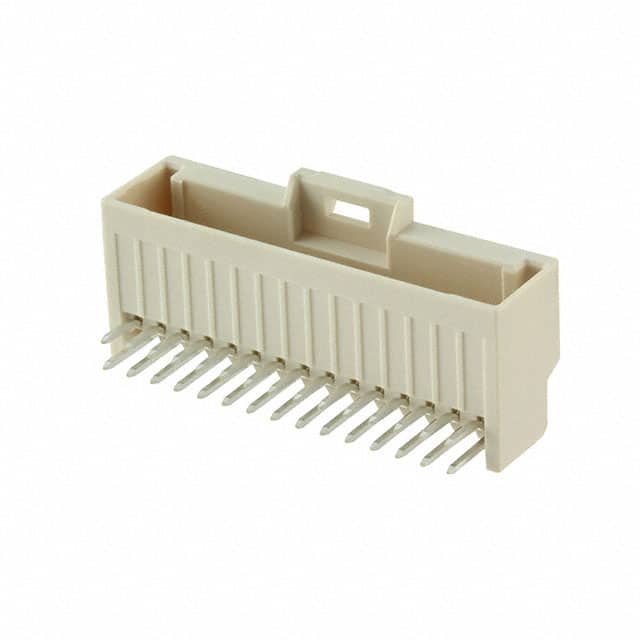

5018763040 The Molex 5018763040 is a 30-position, 2-row, 2mm pitch right-angle header with male pins. It features a shrouded 4-wall design and latch holder for secure wire-to-board connections.
Mfr Part #:

5018763040

Available from 1 distributors
Mfr Name: Molex
Molex
The Molex 5018763040 is a 30-position, 2-row, 2mm pitch right-angle header with male pins. It features a shrouded 4-wall design and latch holder for secure wire-to-board connections.
✓ Total Stock: 42,891 pcs
$ Price Range: $1.46 - $2.70

5018763040 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
42,891 pcs
On Request
42891 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5018763040 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5018763040 Description

Short technical summary and product information.

The Molex 5018763040 is a 30-position header connector designed for board-to-cable/wire applications. It features a 2-row configuration with a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact designs. The connector is through-hole mounted with a right-angle orientation, allowing for efficient board layout. The header is shrouded with a 4-wall design and includes a latch holder for secure mating. The contacts are made of brass with a tin finish, square pins, with a contact length of 3.20mm. The insulation is made of polyamide (PA66) nylon 6/6 glass filled material, colored natural, with a flammability rating of UL94 V-0. The connector is RoHS3 compliant and has an MSL of 1. It is designed for solder termination. This header is suitable for a variety of internal wiring applications where reliable connections are required.

5018763040 Quick Information

Product Type: Header, Male Pins
Series: IGRID
Canonical Name: Molex 5018763040, 30 Position 2mm Pitch Through Hole Right Angle Header, Male Pins
Subcategory: Male Pins

5018763040 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5018763040 Estimated Pricing

Qty Low High
1+ $2.70 $2.70
10+ $2.30 $2.30
100+ $2.26 $2.26
250+ $1.82 $1.82
500+ $1.74 $1.74
1,000+ $1.65 $1.65
2,500+ $1.56 $1.56
5,000+ $1.46 $1.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

5018763040 Features

  • 30-position, 2-row header with 2mm pitch.
  • Shrouded 4-wall design for pin protection.
  • Latch holder for secure wire-to-board connection.
  • Through-hole right-angle mounting option.
  • Tin-plated brass contacts for reliable conductivity.

5018763040 Applications

  • Used in board-to-cable connections in industrial equipment.
  • Suitable for internal wiring in consumer electronics.
  • Ideal for applications requiring secure latching.

5018763040 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5018763040 have?

30 positions.

What is the pitch of this header?

2.00mm (0.079").

What is the mounting type?

Through hole, right angle.

How many rows does it have?

2 rows.

What is the contact type?

Male pin.

Is the connector shrouded?

Yes, it has a shrouded 4-wall design.

What is the insulation material?

Polyamide (PA66) nylon 6/6 glass filled.
