| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:35:37 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

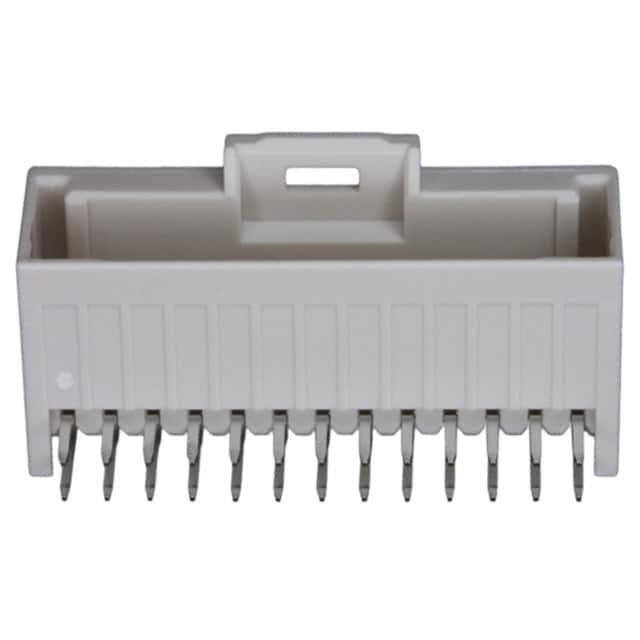

The Molex 5018762640 is a 26-position, 2.00mm pitch, right angle through-hole shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with a latch holder for secure mating, and a natural polyamide (PA66/Nylon 6/6) insulator with glass filling for strength and UL94 V-0 flammability rating.
The header has two rows of square male pin contacts made of brass with a tin finish. The contact length is 3.20mm, and the insulation height is 8.30mm. The mounting type is through-hole, right angle, with solder termination. This connector is suitable for applications requiring a reliable, polarized connection with positive locking.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.45 | $2.45 |
| 10+ | $2.09 | $2.09 |
| 25+ | $1.98 | $1.98 |
| 120+ | $1.77 | $1.77 |
| 300+ | $1.69 | $1.69 |
| 540+ | $1.55 | $1.55 |
| 1,020+ | $1.39 | $1.39 |
| 2,520+ | $1.32 | $1.32 |
| 5,040+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions, all loaded.
2.00mm (0.079 inches).
Through hole, right angle.
Yes, it has a 4-wall shrouded design with a latch holder.
Brass contacts with a tin finish.
Glass filled polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.
