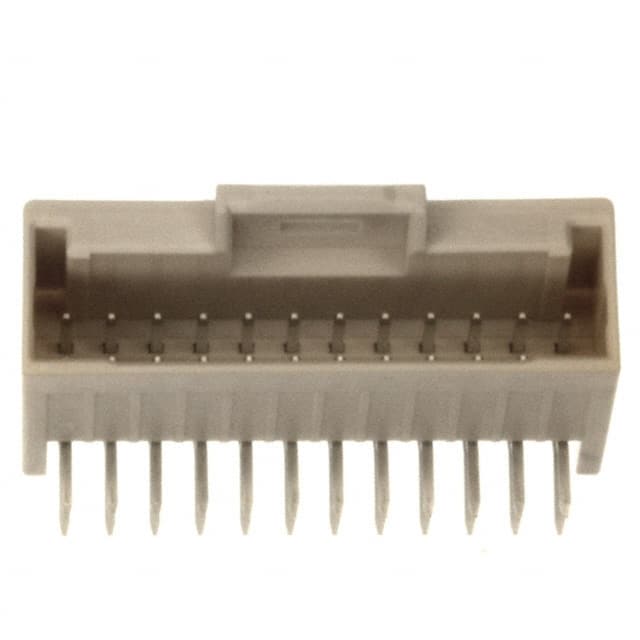

5018762440 This is a 24-position, 2-row shrouded header by Molex with a 2.00mm pitch. It features right-angle through hole mounting and tin-plated brass contacts.
Mfr Part #:

5018762440

Available from 1 distributors
Mfr Name: Molex
Molex
This is a 24-position, 2-row shrouded header by Molex with a 2.00mm pitch. It features right-angle through hole mounting and tin-plated brass contacts.
✓ Total Stock: 25,636 pcs
$ Price Range: $1.21 - $2.26

5018762440 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
25,636 pcs
On Request
25636 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5018762440 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5018762440 Description

Short technical summary and product information.

The Molex 5018762440 is a 24-position, 2-row shrouded header designed for board-to-cable/wire connections. It features a 2.00mm pitch with a row spacing of 2.00mm, and the contacts are made of tin-plated brass with a square shape. The right-angle through hole mounting allows for efficient PCB layout in space-constrained designs.



The insulator is made from glass-filled polyamide (PA66/Nylon 6/6) with a natural color, and it is rated UL94 V-0 for flammability. The header is fully shrouded with a 4-wall design, and it includes a latch holder fastening type for secure mating. The contact length is 3.20mm, and the insulation height is 8.30mm.



This component is suitable for use in various applications requiring reliable board-to-wire interconnects. The 2x2 configuration provides 24 total positions, all loaded.

5018762440 Quick Information

Product Type: Header, Male Pins
Canonical Name: Header, Male Pins, 24 Position, 2.00mm Pitch, Through Hole, Right Angle, Shrouded
Subcategory: Male Pins

5018762440 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5018762440 Estimated Pricing

Qty Low High
1+ $2.26 $2.26
10+ $1.92 $1.92
100+ $1.86 $1.86
300+ $1.51 $1.51
600+ $1.43 $1.43
1,200+ $1.33 $1.33
2,700+ $1.29 $1.29
5,100+ $1.21 $1.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

5018762440 Features

  • Shrouded 4-wall design for mating security.
  • Right-angle through hole mounting.
  • Tin-plated brass contacts.
  • UL94 V-0 flammability rating.
  • Latch holder fastening type.

5018762440 Applications

  • Board-to-cable/wire connections.
  • Industrial control and automation modules.
  • Consumer electronics interconnects.
  • Automotive interior wiring harnesses.

5018762440 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

24 positions (2 rows, all loaded).

What is the pitch and row spacing?

Pitch is 2.00mm, row spacing is also 2.00mm.

What mounting type does it use?

Through hole, right angle mounting.

What contact material and finish are used?

Contact material is brass with tin finish.

What is the insulation material and flammability rating?

Insulation is glass-filled polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.

Is this component RoHS compliant?

RoHS3 Compliant (unverified status).

What is the fastening type?

Latch holder for secure mating.
