| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,471 pcs
|
11471 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

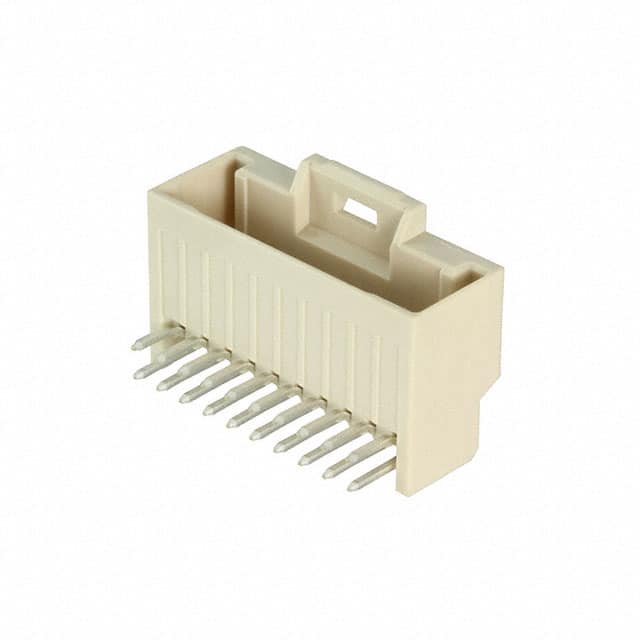

The Molex 5018762040 is a 20-position, 2-row rectangular header designed for board-to-cable/wire applications. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact, high-density interconnect designs.
The header uses a through-hole, right-angle mounting configuration with solder termination. It has a shrouded 4-wall design with a latch holder fastening type, providing mechanical protection and secure mating with compatible cable assemblies.
Contacts are made of brass with a tin finish and have a square shape. The mating contact length is 3.20mm. The insulator is made of glass-filled polyamide (PA66/Nylon 6/6) in natural color, with an insulation height of 8.30mm. The material has a UL94 V-0 flammability rating.
This component is suitable for applications requiring reliable, polarized connections in space-constrained environments where right-angle routing is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 10+ | $1.47 | $1.47 |
| 75+ | $1.43 | $1.43 |
| 300+ | $1.13 | $1.13 |
| 525+ | $1.07 | $1.07 |
| 1,050+ | $1.04 | $1.04 |
| 2,550+ | $1.03 | $1.03 |
| 5,025+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Molex 5018762040 has 20 positions arranged in 2 rows.
The pitch is 2.00mm, with a row spacing of 2.00mm.
It uses through-hole, right-angle mounting with solder termination.
The contacts are made of brass with a tin finish and have a square shape.
The insulator is glass-filled polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
Yes, it has a shrouded 4-wall design with a latch holder fastening type.
