| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,794 pcs
|
29794 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

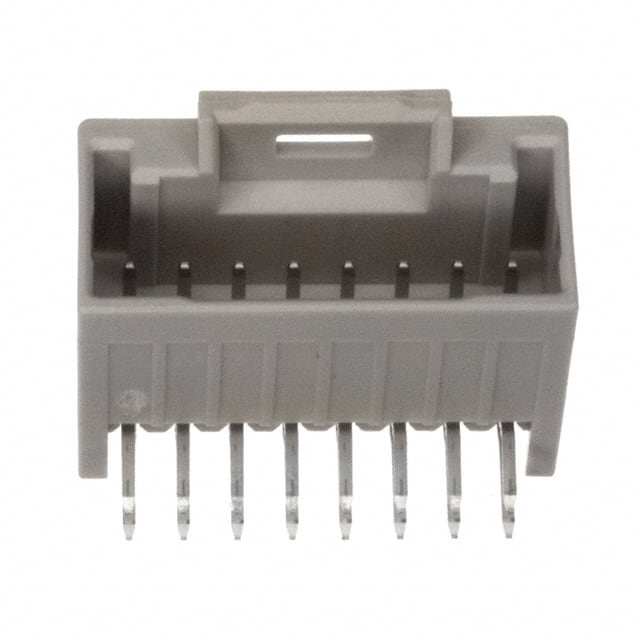

The Molex 5018761640 is a 16 position, 2.00mm pitch, right angle shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with a latch holder fastening type for secure mating. The header has 2 rows of male pin contacts made of brass with a tin finish. The insulation is made of glass-filled Nylon 6/6 (PA66) in a natural color and has a UL94 V-0 flammability rating. The mounting type is through hole, right angle with solder termination. The contact length is 3.20mm and the insulation height is 8.30mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
| 10+ | $1.30 | $1.30 |
| 25+ | $1.17 | $1.17 |
| 90+ | $1.12 | $1.12 |
| 270+ | $0.99 | $0.99 |
| 540+ | $0.94 | $0.94 |
| 1,080+ | $0.92 | $0.92 |
| 5,040+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Molex 5018761640 has 16 positions, all loaded.
The pitch is 2.00mm.
It is a through hole, right angle mounting type with solder termination.
Yes, it has a shrouded 4-wall design with a latch holder fastening type.
The contacts are made of brass with a tin finish.
The insulation is glass-filled Nylon 6/6 (PA66) with a UL94 V-0 flammability rating.
