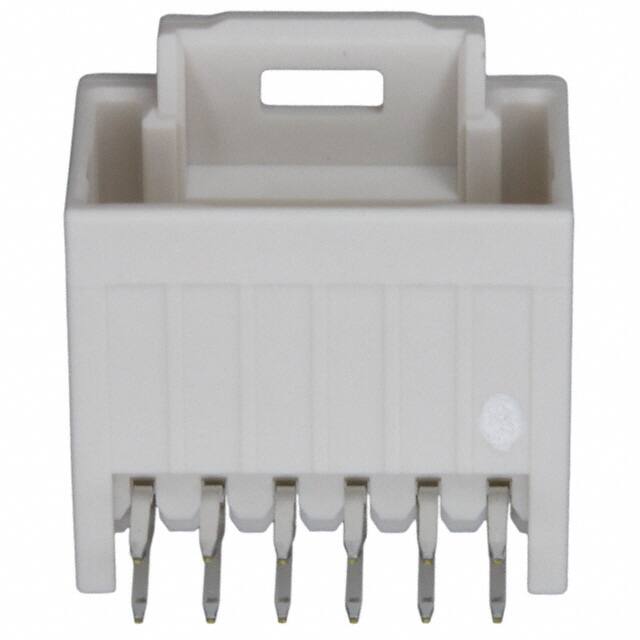

The Molex 5018761240 is a 12-position header from the 2.00mm pitch family, designed for board-to-cable/wire applications. It features a right angle through hole mounting style with solder termination, making it suitable for compact PCB layouts where space is constrained. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating with compatible cable connectors.
The contacts are square brass pins with a tin finish, providing reliable conductivity and corrosion resistance. The insulation is molded from polyamide (PA66) nylon 6/6, glass filled, in a natural color, with a flammability rating of UL94 V-0. The insulation height is 8.30mm, and the contact length is 3.20mm. The header has 2 rows with a pitch of 2.00mm and row spacing of 2.00mm, all positions loaded.
This component is intended for use in various electronic assemblies requiring a compact, reliable interconnect between a PCB and a cable harness. The right angle orientation helps reduce overall height in the enclosure. Compliance data (RoHS, REACH, MSL) is unverified and should be confirmed with the manufacturer. No datasheet is currently linked.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $1.16 | $1.16 |
| 120+ | $0.98 | $0.98 |
| 240+ | $0.97 | $0.97 |
| 600+ | $0.86 | $0.86 |
| 1,080+ | $0.82 | $0.82 |
| 5,040+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 12 positions.
The pitch is 2.00mm (0.079 inches).
The mounting type is Through Hole, Right Angle with solder termination.
The contacts are made of brass with a tin finish.
The insulation is polyamide (PA66) Nylon 6/6, glass filled, with a UL94 V-0 flammability rating.
Yes, it features a latch holder fastening type.
Yes, it is shrouded with a 4-wall design.
