| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

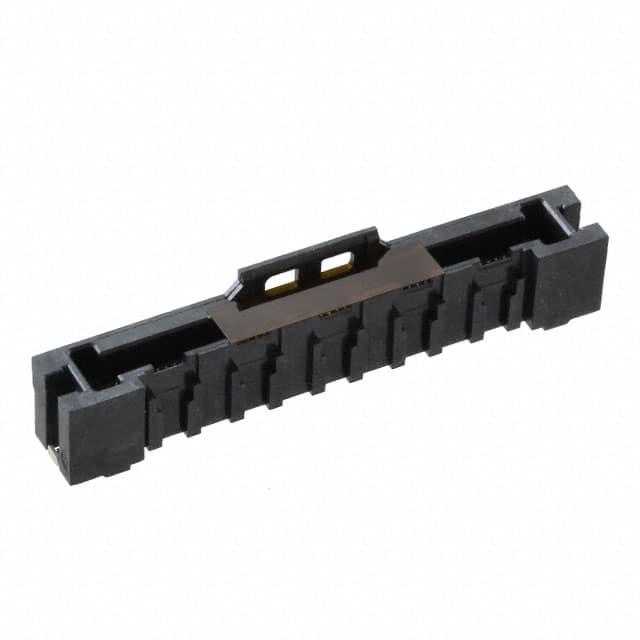

This Molex 5017865090 is a FFC/FPC connector assembly designed for vertical surface mounting. It offers 50 positions with a precise 0.5mm pitch, making it suitable for high-density applications where space is a constraint.
The connector is rated for up to 50V and operates within a temperature range of -40°C to 85°C. The housing is constructed from glass-filled Liquid Crystal Polymer (LCP), ensuring durability and thermal stability. Contacts are made of copper alloy with a gold finish for reliable conductivity and corrosion resistance.
Key mechanical features include a height above the board of 5.95mm and support for FFC/FPC thicknesses of 0.30mm. The design incorporates a slide lock mechanism for secure cable retention and board guides for proper alignment during assembly. The material flammability rating is UL94 V-0, indicating a high standard of safety.
This connector assembly is ideal for applications requiring a secure and compact connection for flexible flat cables. Its robust construction and specific features like solder retention contribute to reliable performance in various electronic devices.
The Molex 5017865090 connector has 50 positions.
The pitch of the Molex 5017865090 FFC connector is 0.5mm.
The voltage rating for the Molex 5017865090 is 50V.
The operating temperature range is -40°C to 85°C.
The Molex 5017865090 uses Surface Mount type mounting.
The housing material is Liquid Crystal Polymer (LCP), Glass Filled.
The contact material is Copper Alloy with a Gold finish.
