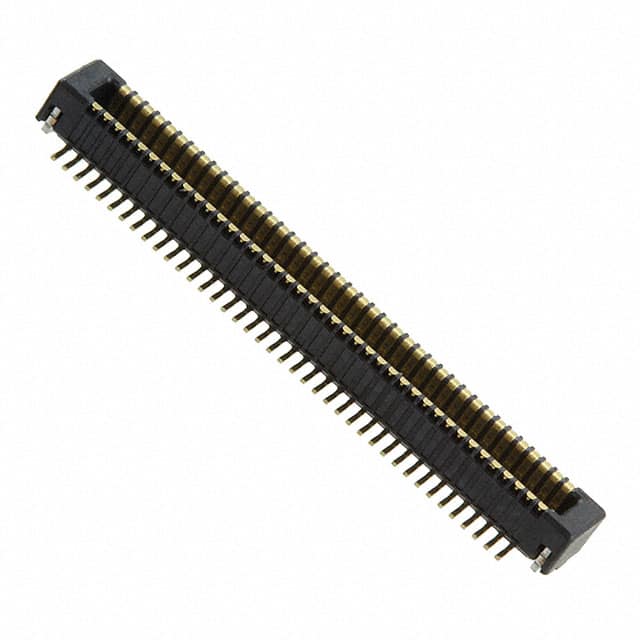

The Molex 5017450801 is a high-density board-to-board connector designed for mezzanine stacking applications. This plug connector features 80 positions arranged in 2 rows with a fine 0.4mm pitch, enabling compact PCB designs. The outer shroud contact design provides reliable mating. Contacts are plated with 8.00µin (0.203µm) gold for robust signal integrity and corrosion resistance. The connector is surface mount (SMD) with solder retention features, ensuring secure attachment during reflow soldering. The mated stacking height is 2mm, suitable for low-profile mezzanine interconnects. The connector body height above board is 1.64mm. This component is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
This connector is suited for high-density interconnections in compact electronic assemblies. Its gold contact finish and fine pitch make it ideal for applications requiring reliable multiple connections in tight spaces. The solder retention feature aids in high-volume manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.38 | $2.38 |
| 25+ | $2.13 | $2.13 |
| 100+ | $2.03 | $2.03 |
| 250+ | $1.92 | $1.92 |
| 500+ | $1.87 | $1.87 |
| 1,000+ | $1.72 | $1.72 |
| 2,500+ | $1.59 | $1.59 |
| 5,000+ | $1.47 | $1.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 80 positions arranged in 2 rows.
The pitch is 0.40mm (0.016 inches).
The contact finish is gold with a thickness of 8.00µin (0.203µm).
It is surface mount (SMD) and includes a solder retention feature.
The mated stacking height is 2mm.
