| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,143 pcs
|
7143 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

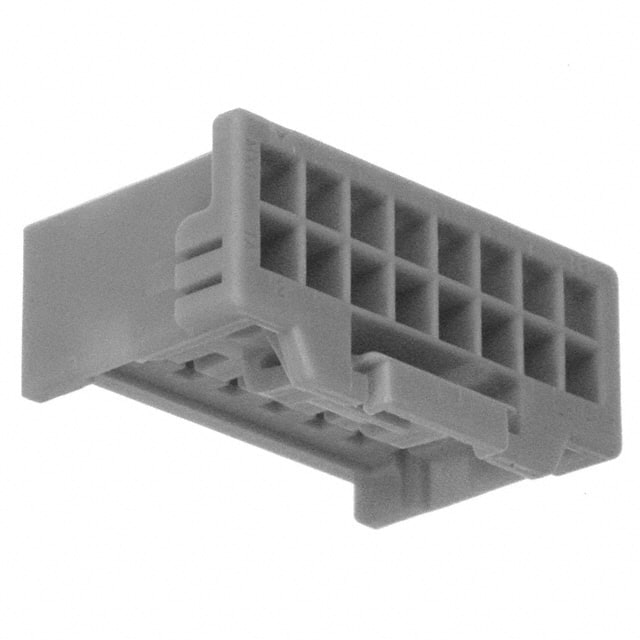

The Molex 5016461600 is a 16-position receptacle housing from the iGrid family, a dual-row wire-to-board system with a compact 2.00mm pitch. It accepts female socket crimp terminals (sold separately) for reliable, tooled wire termination. The housing is molded from natural nylon rated UL 94V-0 for flammability, and is halogen-free (low-halogen). A latch lock ensures positive retention when mated with iGrid pin headers, and the part is polarized to prevent misalignment. It supports an operating temperature range of -40°C to +105°C. This free hanging (in-line) housing is bag packaged and is RoHS, REACH, and ELV compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.43 | $0.43 |
| 100+ | $0.39 | $0.39 |
| 200+ | $0.36 | $0.36 |
| 1,000+ | $0.35 | $0.35 |
| 2,600+ | $0.32 | $0.32 |
| 10,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 16 positions arranged in 2 rows.
Free hanging (in-line) mounting, not panel mount or stackable.
Crimp termination for the female socket contacts.
-40°C to +105°C.
Yes, it is polarized to the mating part to ensure correct orientation, but has no keying feature.
