| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,638 pcs
|
32638 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

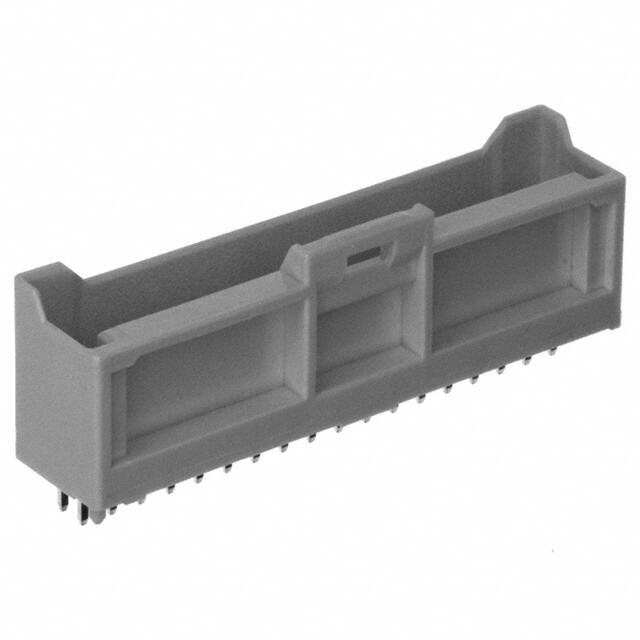

The Molex 5016453620 is a 36-position, 2-row, shrouded header connector designed for board-to-cable/wire applications. It features a 2.00mm pitch and 0.079" row spacing, making it suitable for compact designs. The connector uses male square pins with a tin mating finish and brass contact material, ensuring reliable electrical performance.
The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. It is mounted via through-hole solder termination and has a mating contact length of 3.20mm. The insulation is made of glass-filled Polyamide (PA66/Nylon 6/6) in a natural color, with a UL94 V-0 flammability rating. A board guide feature aids in alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.63 | $2.63 |
| 10+ | $2.27 | $2.27 |
| 50+ | $1.97 | $1.97 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.59 | $1.59 |
| 1,000+ | $1.48 | $1.48 |
| 2,500+ | $1.39 | $1.39 |
| 5,000+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 36 positions, all loaded, in 2 rows.
The pitch is 2.00mm (0.079").
It is a through-hole mount connector with solder termination.
Yes, it is a shrouded header with a 4-wall design.
The insulation is glass-filled Polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
