| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,917 pcs
|
16917 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

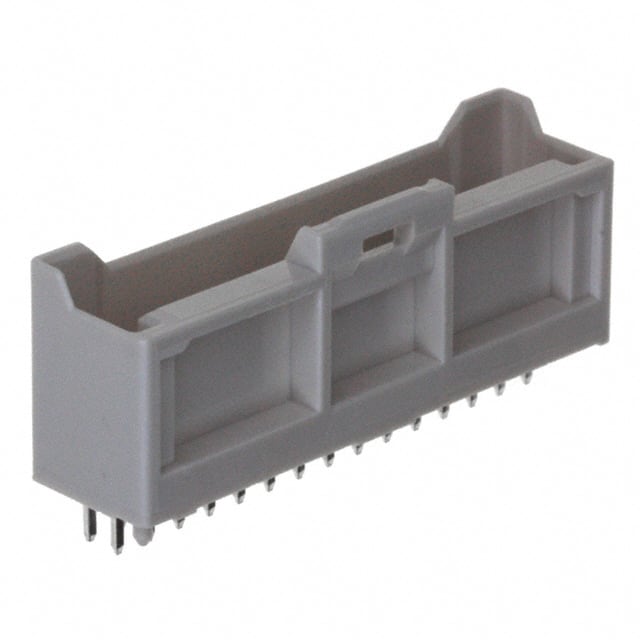

The Molex 5016453020 is a 30-position header connector designed for board-to-cable/wire applications. It features 2 rows of male pins arranged at a 2.00mm pitch with a matching 2.00mm row spacing. The through hole mounting style with solder termination ensures a robust mechanical connection to the PCB. The connector is shrouded with a 4-wall design and includes a latch holder for secure mating and retention. Contacts are made of brass with a tin finish, providing reliable conductivity. The insulation is molded from natural polyamide (PA66) nylon 6/6 glass filled material, rated UL94 V-0 for flammability resistance. The insulation height is 12.00mm and the contact length is 3.20mm. A board guide feature aids in alignment during assembly. This header is suitable for applications requiring a reliable, polarized connection with positive locking.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 10+ | $1.39 | $1.39 |
| 25+ | $1.17 | $1.17 |
| 280+ | $1.14 | $1.14 |
| 560+ | $1.13 | $1.13 |
| 1,050+ | $1.08 | $1.08 |
| 2,520+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
2.00mm (0.079").
Through hole.
Brass contacts with tin finish.
Yes, it has a shrouded 4-wall design with latch holder.
Polyamide (PA66) nylon 6/6 glass filled, rated UL94 V-0.
Board to cable/wire.
