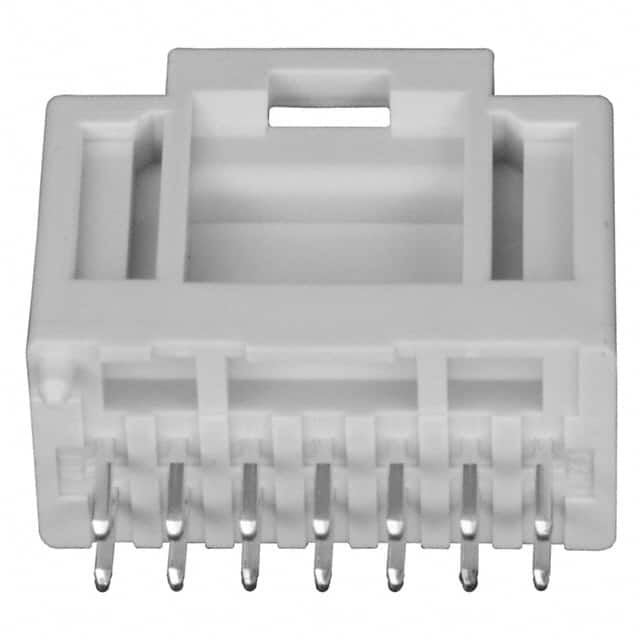

5016451420 This Molex 5016451420 is a 14-position, 2.00mm pitch, vertical through hole header from the iGrid wire-to-board system. It features a shrouded 4-wall design with latch holder fastening and tin-plated brass contacts.
Mfr Part #:

5016451420

Available from 2 distributors
Mfr Name: Molex
Molex
This Molex 5016451420 is a 14-position, 2.00mm pitch, vertical through hole header from the iGrid wire-to-board system. It features a shrouded 4-wall design with latch holder fastening and tin-plated brass contacts.
✓ Total Stock: 4,958 pcs
$ Price Range: $0.68 - $1.25

5016451420 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
4,900 pcs
On Request
4900 pcs On Request 1 On Request On Request On Request On Request On Request
Tokyo Device ✓
Non-Authorised Inventory information
58 pcs
On Request
58 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5016451420 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature Range
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

5016451420 Description

Short technical summary and product information.

The Molex 5016451420 is a 14-circuit, dual-row, vertical through hole header from the iGrid wire-to-board system. It uses a 2.00mm pitch and features a shrouded 4-wall design with latch holder fastening for secure mating. The header is polarized to both the mating part and the PCB and includes a board guide for alignment.



Electrical ratings include a maximum current of 2.0A per contact and a maximum voltage of 250V AC (RMS)/DC. The operating temperature range is -40°C to +105°C. The contacts are made of brass with a tin plating on both the mating and termination areas, while the natural-colored insulator is glass-filled Nylon 6/6 with a UL94 V-0 flammability rating.



This header is supplied in tray packaging and has a net weight of 923.6 mg. It is RoHS and REACH compliant, and is not low-halogen. The 3.20mm PC tail length is suitable for standard through-hole soldering.

5016451420 Quick Information

Product Type: Through Hole Header
Series: 501645
Canonical Name: Molex iGrid 501645 Series PCB Header, 14 Circuits, 2.00mm Pitch, Vertical, Through Hole, Tin Plating, Natural
Subcategory: Shrouded Header

5016451420 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Not Contained

5016451420 Estimated Pricing

Qty Low High
1+ $1.25 $1.25
10+ $1.07 $1.07
25+ $1.04 $1.04
100+ $0.91 $0.91
500+ $0.77 $0.77
980+ $0.72 $0.72
2,940+ $0.70 $0.70
5,880+ $0.68 $0.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

5016451420 Features

  • 14 circuits in a dual-row configuration.
  • Shrouded 4-wall design with latch holder.
  • Rated for 2.0A per contact at 250V.
  • UL94 V-0 flammability rated insulator.
  • Keyed and polarized for correct mating.

5016451420 Applications

  • Signal and power wire-to-board connections.
  • Used in consumer and industrial electronics.
  • Suitable for applications requiring positive locking.
  • Ideal for space-constrained board designs.

5016451420 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 2.00mm (0.079 inches) for both the mating interface and row spacing.

What is the maximum current rating per contact?

The maximum current per contact is 2.0A.

What is the mounting type for this part?

This header is a through-hole (solder) mount component.
