| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,124 pcs
|
5124 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
3,780 pcs
|
3780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
521 pcs
|
521 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

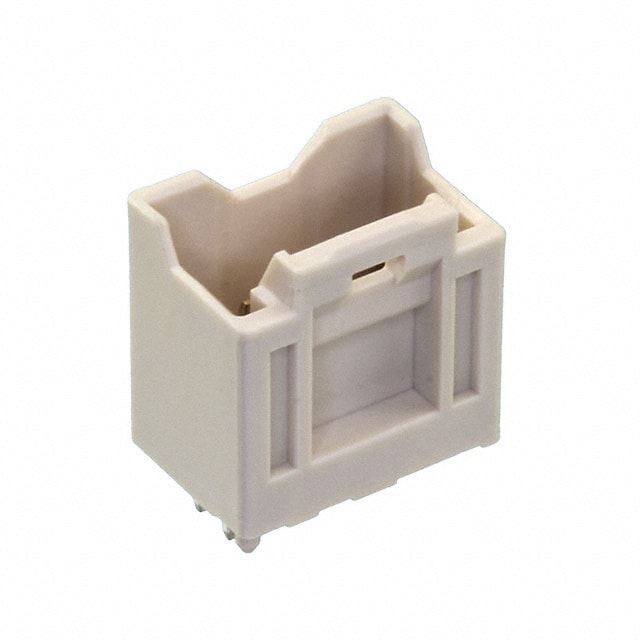

The Molex 5016451020 is a 10-position, 2.00mm pitch, 2-row shrouded header designed for board-to-cable/wire applications. It features male pins with tin-plated brass contacts for reliable electrical connections. The through-hole mounting with solder termination ensures robust mechanical attachment to the PCB.
The header is fully shrouded with 4 walls, providing protection and alignment for mating connectors. A latch holder fastening type secures the connection, and a board guide aids in accurate placement during assembly. The insulation is made of glass-filled polyamide (PA66) in natural color, rated UL94 V-0 for flammability.
This component is suitable for compact designs requiring a reliable, polarized interface. The 2.00mm pitch saves board space while maintaining adequate spacing for signal integrity. The all-loaded positions ensure full connectivity. Compliance data is unverified; RoHS3, MSL 1, and REACH unaffected are listed but should be confirmed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
| 10+ | $0.74 | $0.74 |
| 25+ | $0.73 | $0.73 |
| 100+ | $0.68 | $0.68 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.58 | $0.58 |
| 5,040+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded.
2.00mm.
Through hole with solder termination.
2 rows.
Tin.
Polyamide (PA66), Nylon 6/6, glass filled, with UL94 V-0 rating.
Yes, shrouded with 4 walls.
