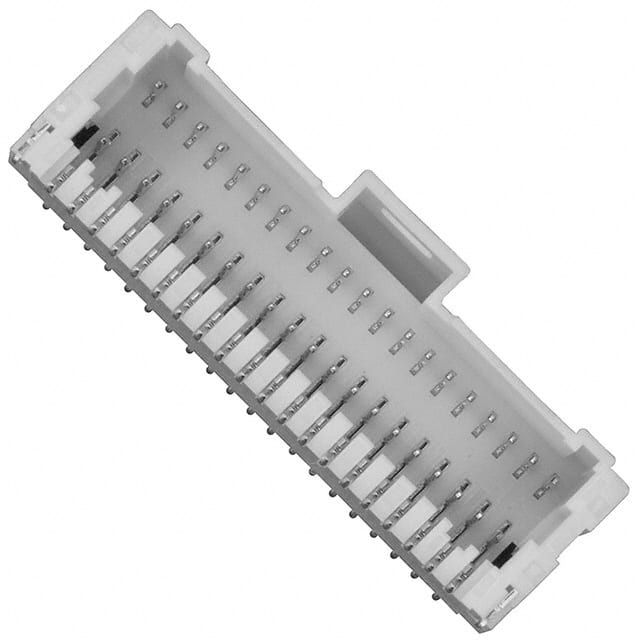

This Molex 5015714007 is a 40-position, 2-row shrouded header with a 1.00mm pitch and 2.66mm row spacing. It features surface mount, right angle termination with solder retention. The contacts are male pins made of phosphor bronze with a 1.00µm gold finish. The insulation is natural polyamide (nylon) with an 8.25mm height and UL94 V-0 flammability rating. The connector is shrouded with 4 walls and includes a latch holder for secure mating. Designed for board-to-cable/wire interconnects, it is suitable for high-density applications requiring reliable connections.
The header is terminated via solder and is RoHS3 compliant (unverified). Moisture sensitivity level is 1 (unlimited). REACH unaffected status is also unverified. The part is available in tape and reel packaging from distributors.
Given its compact pitch and right-angle mounting, this connector is ideal for space-constrained designs in consumer electronics, industrial controls, and other applications where a robust cable-to-board interface is required. The gold plating ensures good corrosion resistance and reliable signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.62 | $4.62 |
| 10+ | $3.93 | $3.93 |
| 100+ | $3.34 | $3.34 |
| 500+ | $3.22 | $3.22 |
| 800+ | $2.97 | $2.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions, all loaded in 2 rows.
1.00 mm.
Surface mount, right angle.
2.66 mm.
Gold, 1.00 µm thickness.
Polyamide (PA), Nylon.
Yes, shrouded with 4 walls and a latch holder.
