| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
468 pcs
|
468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
468 pcs
|
468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Durability (min) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL | |
| Voltage - Max | |
| current_rating (Maximum @ 20 circuits, AWG 28) | |
| current_rating (Maximum @ 20 circuits, AWG 30) | |
| current_rating (Maximum @ 20 circuits, AWG 32) |

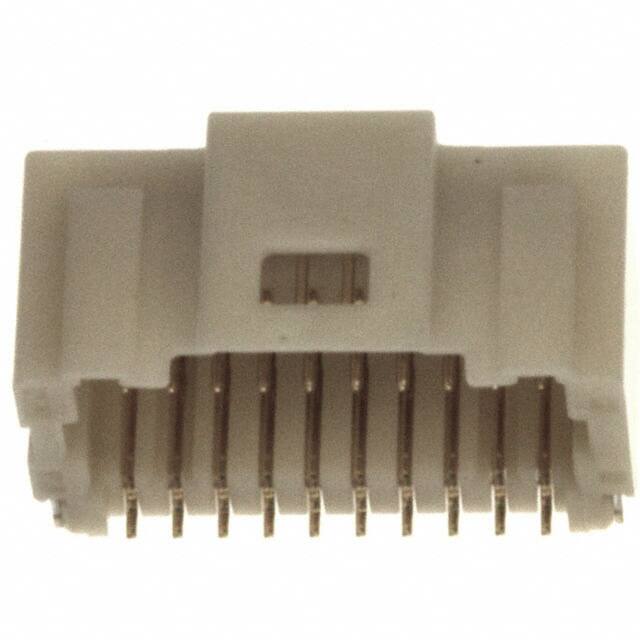

The Molex 5015712007 is a Pico-Clasp series wire-to-board header connector. It features 20 positions arranged in two rows at a 1.00mm pitch, with a surface mount right-angle orientation. The connector is shrouded with a 4-wall design and includes a latch holder for positive retention. The male pins are made of phosphor bronze with gold plating (39.4µin / 1.00µm) for reliable contact. The housing is natural nylon (UL94 V-0) and measures 8.25mm in insulation height. This connector is designed for board-to-cable/wire applications and supports solder termination.
Electrical specifications include a maximum voltage rating of 50V and current ratings of 1.0A for AWG 28 and 30 wires, and 0.8A for AWG 32. Contact resistance is 20 milliohms maximum, and insulation resistance is 100 MΩ minimum. The dielectric withstanding voltage is 250V AC. The operating temperature range is -40°C to +105°C, with a minimum durability of 30 mating cycles.
The connector is supplied in tape and reel packaging for automated assembly. It is RoHS3 compliant and not halogen free. The MSL (Moisture Sensitivity Level) is 1 (unlimited). This header is suitable for compact electronic devices such as drones, smart meters, medical patient monitors, and industrial servo motors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 10+ | $1.63 | $1.63 |
| 100+ | $1.39 | $1.39 |
| 500+ | $1.33 | $1.33 |
| 800+ | $1.23 | $1.23 |
| 2,400+ | $1.18 | $1.18 |
| 4,800+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
1.00mm (0.039 in).
1.0A maximum for AWG 28/30 wires, 0.8A for AWG 32 wires.
50V maximum.
Surface mount, right angle.
-40°C to +105°C.
30 cycles minimum.
