| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
591 pcs
|
591 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

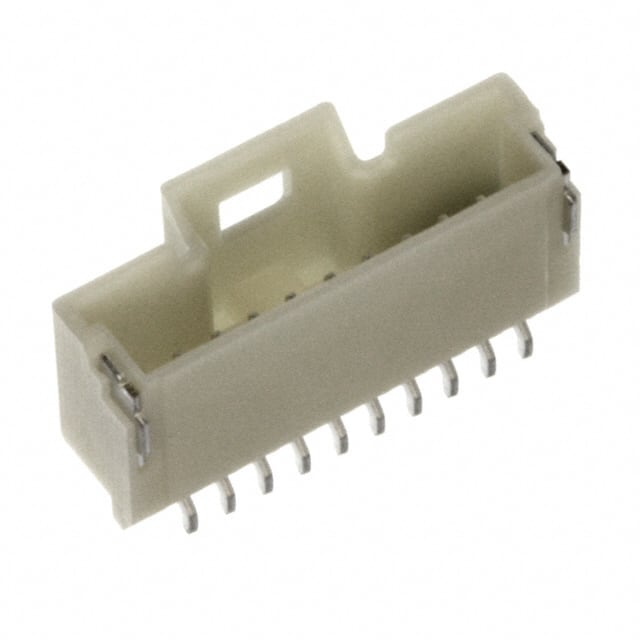

The Molex 5015681007 is a 10 position, single row, shrouded header designed for board-to-cable/wire applications. It features a 1.00mm pitch and a right angle surface mount termination style, making it suitable for compact, low-profile designs. The header is fully loaded with all 10 positions and includes a latch holder fastening type for secure mating. The insulation is made of polyamide (nylon) with a natural color and a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish (40.0µin thickness) and a square contact shape. The component also includes a solder retention feature to improve mechanical stability during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.72 | $0.72 |
| 100+ | $0.61 | $0.61 |
| 500+ | $0.56 | $0.56 |
| 1,300+ | $0.51 | $0.51 |
| 2,600+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 10 positions, all loaded.
Surface mount, right angle.
Yes, it is a shrouded 4-wall design.
Tin with a thickness of 40.0µin (1.02µm).
Polyamide (nylon) with UL94 V-0 rating.
