| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,100 pcs
|
5100 pcs | On Request | 1 | On Request | On Request | 2119 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

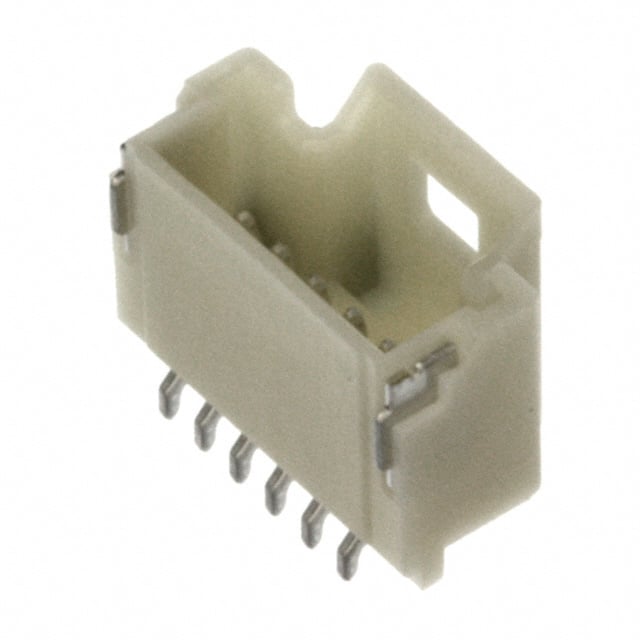

This Molex 5015680607 is a 6-position single row header with 1.00mm pitch designed for board-to-cable/wire connections. It uses surface mount right-angle termination and includes a solder retention feature for reliable attachment. The male pin contacts are made of phosphor bronze with a tin finish of 1.02µm thickness. The housing is molded from polyamide (PA) nylon in natural color and carries a UL94 V-0 flammability rating. It features a shrouded 4-wall design and a latch holder for secure mating. This component is suitable for compact electronic assemblies requiring high-density interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.56 | $0.56 |
| 1,300+ | $0.51 | $0.51 |
| 2,600+ | $0.49 | $0.49 |
| 3,900+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
1.00mm pitch.
Surface mount, right angle.
Tin finish with 1.02µm thickness.
Yes, shrouded with 4 walls.
Yes, latch holder fastening type.
Polyamide (PA) nylon with UL94 V-0 flammability rating.
