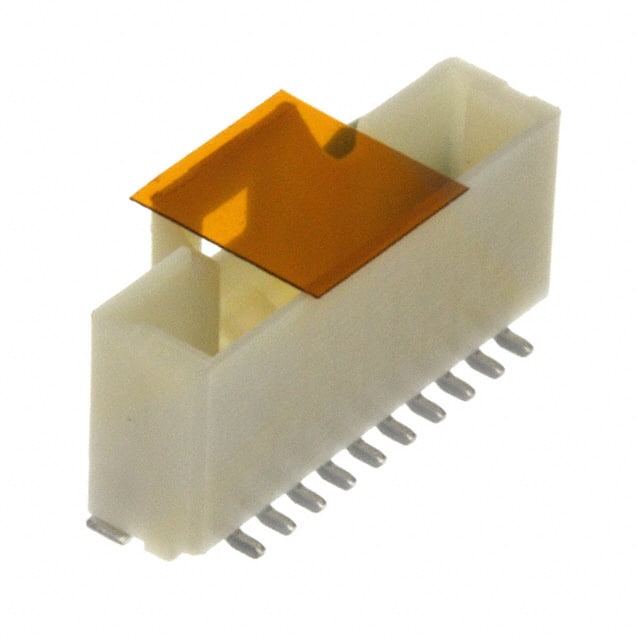

The Molex 5013311007 is a 10-position, single row, 1.00mm pitch PCB header from the Pico-Clasp series. It is vertical through-hole? No, it is surface mount with solder termination. The header is fully shrouded (4-wall) and features a latch holder for secure mating. It is polarized to the mating part and has PCB retention for robust board attachment.
Electrically, each contact is rated for 1.0A maximum current and 100V AC (RMS)/DC voltage. The operating temperature range is -40 to +105°C, with a durability of 30 mating cycles. Contacts are made of phosphor bronze with tin plating, and the insulation is polyamide (PA46) / Nylon 4/6 with a UL94 V-0 flammability rating.
The header is packaged in embossed tape on reel and includes features for automated assembly such as pick-and-place vacuum pickup and solder retention. It is RoHS compliant and REACH SVHC not contained. This connector is suitable for wire-to-board signal applications in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.71 | $0.71 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.54 | $0.54 |
| 1,100+ | $0.48 | $0.48 |
| 2,200+ | $0.47 | $0.47 |
| 4,400+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.00mm (0.039 inches).
1.0A per contact.
100V AC (RMS)/DC.
Surface mount.
-40 to +105°C.
Yes, polarized to mating part.
