| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

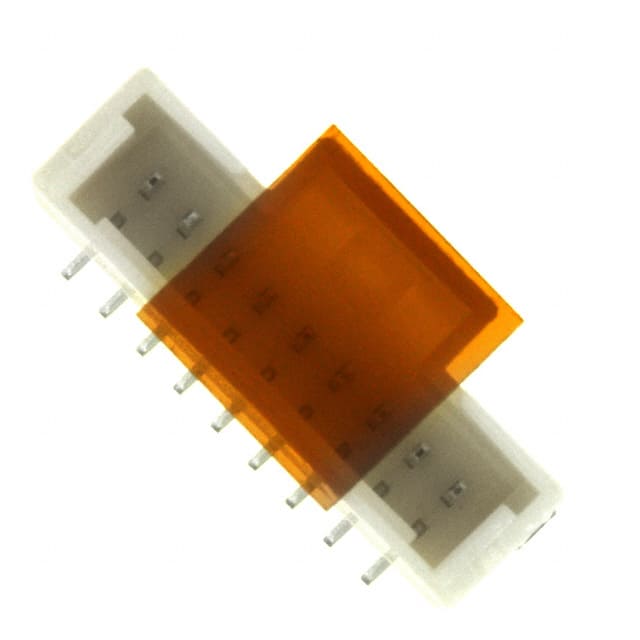

The Molex 5013310907 is a 9-position, single-row, surface-mount header designed for board-to-cable/wire applications. It features a 1.00mm pitch and is fully shrouded with a 4-wall design, providing robust mating alignment and protection. The contacts are male pins made of phosphor bronze with a tin finish (40.0µin), suitable for regular soldering assembly.
The connector includes pick-and-place and solder retention features, making it compatible with automated assembly processes. The housing is molded from natural polyamide (PA46/Nylon 4/6) material with UL94 V-0 flammability rating, ensuring reliable performance and safety compliance. A latch holder fastening type secures the mating connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.71 | $0.71 |
| 100+ | $0.60 | $0.60 |
| 250+ | $0.54 | $0.54 |
| 1,100+ | $0.44 | $0.44 |
| 2,200+ | $0.43 | $0.43 |
| 4,400+ | $0.41 | $0.41 |
| 9,900+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 9 positions in a single row, all loaded.
Surface Mount with Solder termination.
