| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:27:11 | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

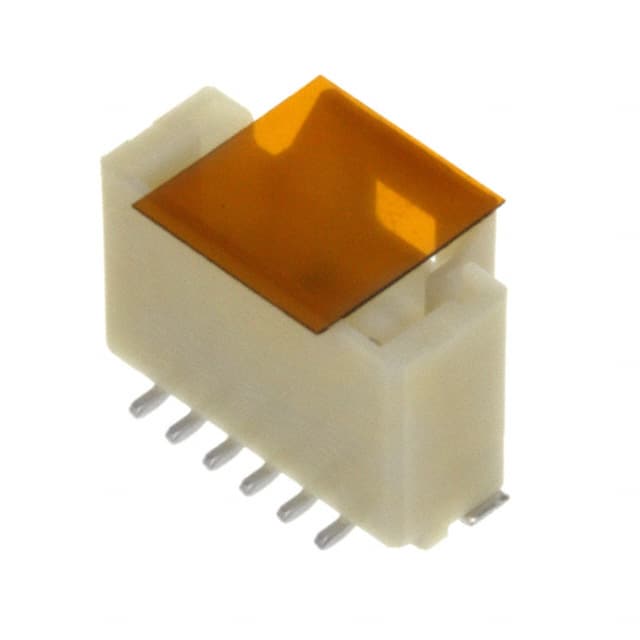

The Molex 5013310607 is a 6-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 1.00mm pitch, surface mount termination, and a latch holder for secure mating. The contacts are made of phosphor bronze with a tin finish (40.0µin / 1.02µm) and have a square shape for reliable electrical contact.
The header is fully shrouded on all four sides, providing protection and alignment for the mating connector. The insulation material is polyamide (PA46) / Nylon 4/6 in natural color, with a height of 5.40mm. It is rated UL94 V-0 for flammability.
Designed for automated assembly, the part includes pick-and-place and solder retention features. The header is supplied in surface mount packaging, suitable for high-volume production. RoHS, REACH, and MSL Level 1 status are unverified but claimed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.59 | $0.59 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.46 | $0.46 |
| 1,100+ | $0.37 | $0.37 |
| 2,200+ | $0.36 | $0.36 |
| 4,400+ | $0.35 | $0.35 |
| 9,900+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 6 positions in a single row.
The pitch is 1.00mm (0.039 inches).
It is a surface mount device with solder termination.
Yes, it is fully shrouded on all four sides.
Contacts are made of phosphor bronze with a tin finish (40.0µin / 1.02µm).
Yes, it includes pick-and-place and solder retention features.
