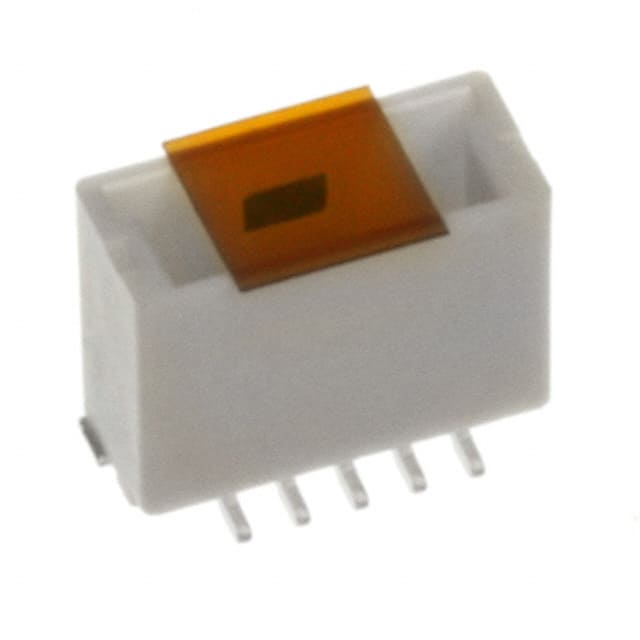

The Molex 5013310507 is a PCB header from the Pico-Clasp wire-to-board connector series. It has 5 circuits in a single row with a 1.00mm pitch, making it suitable for compact applications. The header is vertical orientation and surface mount (SMT) with solder termination.
Electrical ratings include 1.5A maximum current per contact and 100V AC (RMS)/DC maximum voltage. The operating temperature range is -40°C to +105°C. The connector features a friction lock for secure mating, and is polarized to the mating part. It is packaged in embossed tape on reel for automated placement, with vacuum pick-up tape for robotic assembly.
Contact material is phosphor bronze with tin plating (40µin). The insulator is natural polyamide (PA46/Nylon 4/6) with UL94 V-0 flammability rating. The header is fully shrouded (4-wall) and includes solder retention features for reliable PCB mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.55 | $0.55 |
| 100+ | $0.46 | $0.46 |
| 250+ | $0.42 | $0.42 |
| 1,100+ | $0.40 | $0.40 |
| 2,200+ | $0.39 | $0.39 |
| 4,400+ | $0.36 | $0.36 |
| 9,900+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
1.00mm.
1.5A maximum.
100V AC (RMS)/DC maximum.
Surface mount.
-40°C to +105°C.
30 cycles maximum.
