| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Termination | |
| Current Rating | |
| Failure Rate | |
| Gender | |
| Low Halogen | |
| Mating Cycles | |
| Mating Plating | |
| Mating Plating Thickness | |
| Packaging Type | |
| Pin or Socket | |
| Product Family | |
| Product Name | |
| Tape & Reel | |
| Termination Interface: Style | |
| Termination Plating | |
| Termination Plating Thickness | |
| Type | |
| UPC | |
| Voltage Rating | |
| Weight | |
| Wire Gauge | |
| Wire Insulation Diameter |

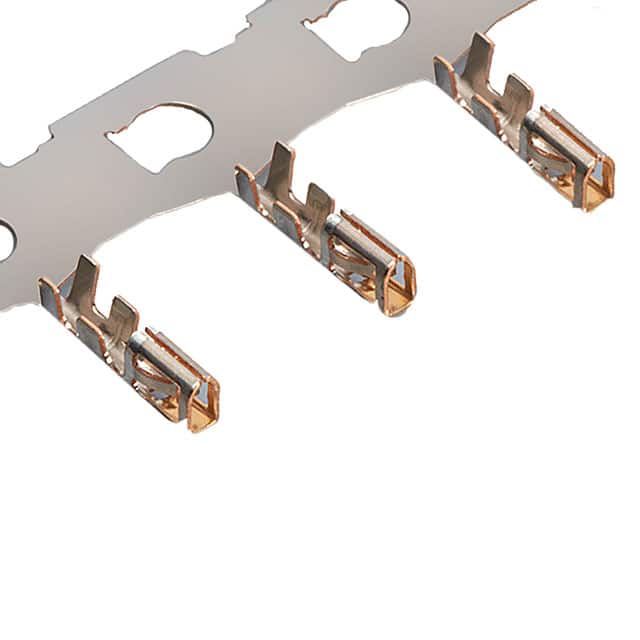

The Molex 5011938000 is a stamped female crimp terminal from the Pico-Clasp wire-to-board connector family. It accepts 28-32 AWG wire with a maximum insulation diameter of 0.80 mm. The contact is made of phosphor bronze with a gold mating plating thickness of 0.38 µm and a tin termination plating thickness of 0.914 µm.
This terminal is rated for 2.0 A maximum current and 100 V AC (RMS)/DC maximum voltage. It is designed for signal applications in wire-to-board and wire-to-wire configurations. The crimp termination interface ensures a reliable mechanical and electrical connection.
The part is supplied on a reel for automated assembly. It is RoHS compliant, REACH not contained, and low-halogen per IEC 61249-2-21. The MSL is rated 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
| 25,000+ | $0.11 | $0.11 |
| 50,000+ | $0.10 | $0.10 |
| 75,000+ | $0.10 | $0.10 |
| 125,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 2.0 A per contact.
The maximum voltage rating is 100 V AC (RMS)/DC.
It accepts 28-32 AWG wire with a maximum insulation diameter of 0.80 mm.
The mating area has gold plating (0.38 µm minimum), and the termination area has tin plating (0.914 µm minimum).
It is rated for a maximum of 30 mating cycles.
