| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,140 pcs
|
22140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,774 pcs
|
10774 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,079 pcs
|
5079 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Gender | |
| Contact Material | |
| Contact Termination | |
| Current Rating | |
| Durability | |
| EU ELV | |
| Failure Rate | |
| Halogen Free | |
| Net Weight | |
| Packaging Type | |
| Pin or Socket | |
| Plating - Mating | |
| Plating - Termination | |
| Tape & Reel | |
| Wire Gauge | |
| Wire Insulation Diameter |

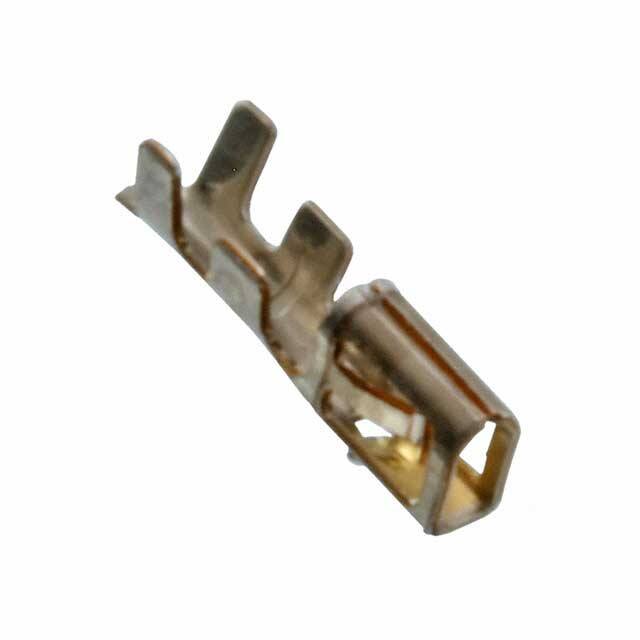

The Molex 5011933000 is a female crimp terminal socket belonging to the Pico-Clasp wire-to-board connector series. Designed for signal and power applications in compact electronic assemblies, this terminal accepts 28-32 AWG wire and accommodates a maximum wire insulation diameter of 0.80 mm. The contact is made from phosphor bronze with a gold plating of 0.10 µm on the mating surface and a tin plating of 0.914 µm on the termination area. It is rated for 1.0 A maximum current per contact and supports up to 30 mating cycles. The terminal is supplied on a reel for automated assembly processes. This component is low-halogen and compliant with EU RoHS, China RoHS, EU ELV, and REACH SVHC (not contained) directives.
The part is a female (socket) crimp terminal for 28-32 AWG wire, with gold mating plating (0.10 µm) and tin termination plating (0.914 µm). It has a current rating of 1.0 A and a durability of 30 mating cycles. The maximum wire insulation diameter is 0.80 mm.
The mating surface is plated with gold at a minimum thickness of 0.10 µm. The termination area is plated with tin at a minimum of 0.914 µm.
It accepts 28-32 AWG wire and a maximum wire insulation diameter of 0.80 mm.
It is supplied on a reel (3000 pieces per reel typical for this series).
Yes, the datasheet states it is compliant with EU RoHS and China RoHS.
The contact is made of phosphor bronze and has a net weight of 8.600 mg.
