| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,790 pcs
|
5790 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

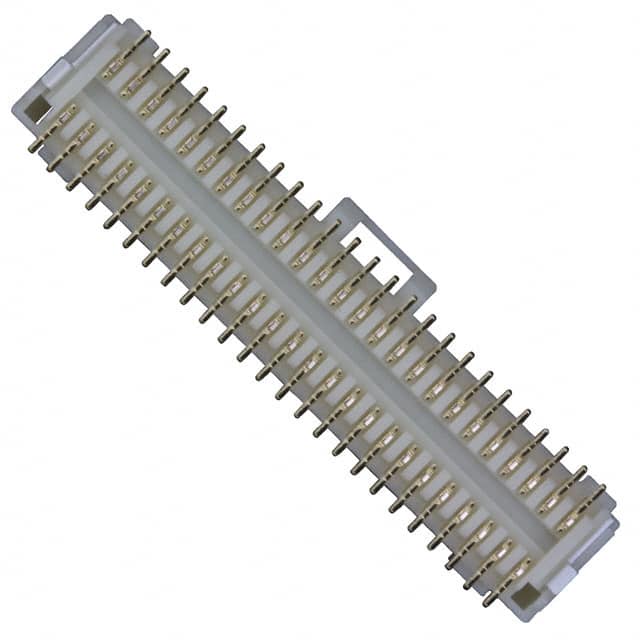

The Molex 5011905017 is a 50-position, 1mm pitch surface mount header designed for board-to-cable/wire connections. It features a 2-row configuration with all positions loaded, providing a compact and reliable interconnect solution for space-constrained applications.
The header is shrouded on all four walls, offering protection for the male pins and ensuring proper mating alignment. It includes a latch holder for secure fastening, and the insulation is made of polyamide (nylon) with a UL94 V-0 flammability rating, suitable for a wide range of environments.
Contacts are made of phosphor bronze with a gold finish (3.90µin thickness), ensuring excellent conductivity and corrosion resistance. The connector is surface mount with solder termination, and includes pick-and-place and solder retention features for automated assembly.
With a row spacing of 0.105" (2.66mm) and an insulation height of 5.40mm, this header is designed for reliable performance in various electronic systems. The natural color insulation and compact pitch make it ideal for high-density PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.06 | $3.06 |
| 10+ | $2.69 | $2.69 |
| 25+ | $2.24 | $2.24 |
| 100+ | $2.04 | $2.04 |
| 250+ | $1.93 | $1.93 |
| 500+ | $1.81 | $1.81 |
| 1,000+ | $1.67 | $1.67 |
| 3,300+ | $1.61 | $1.61 |
| 6,600+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Molex 5011905017 has 50 positions, all loaded.
The pitch is 1.00mm (0.039 inches).
The mounting type is surface mount with solder termination.
The contact finish is gold with a thickness of 3.90µin (0.099µm).
Yes, it is shrouded on all four walls and includes a latch holder for fastening.
