Mfr Part #:

5010142071

Mfr Name: Molex

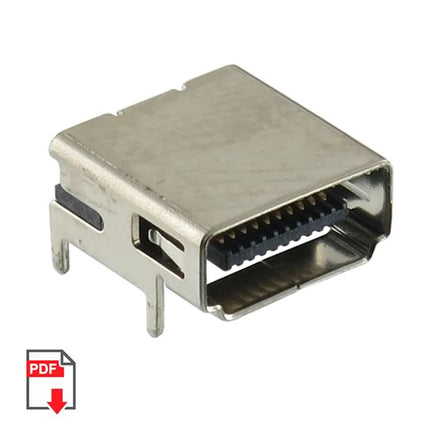

Molex 5010142071 is a Cradlecon 20-position plug connector featuring surface mount right angle mounting and solder termination. It includes board guide and shielded features.

✓ Total Stock: 784 pcs

$ Price Range: $1.29

5010142071 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	784 pcs On Request	784 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

5010142071 Description

Short technical summary and product information.

The Molex 5010142071 is a Cradlecon plug connector with 20 positions designed for surface mount right angle soldering. It features gold contact finish with a thickness of 0.10 µm, ensuring reliable electrical connections. The connector is shielded and includes a board guide for alignment during assembly. This plug connector is classified under Pluggable Connector Assemblies and is suitable for applications requiring compact, high-density interconnections.

5010142071 Quick Information

Product Type: Pluggable Connector Assembly

Series: Cradlecon

Canonical Name: Molex 5010142071 Cradlecon 20-Position SMD Right Angle Plug Connector

Subcategory: Pluggable Connector Assemblies

5010142071 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5010142071 Estimated Pricing

Qty	Low	High
900+	$1.29	$1.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

5010142071 Features

Cradlecon plug connector type.
20 positions for signal connections.
Surface mount right angle mounting.
Gold contact finish of 0.10 µm.
Shielded design with board guide.

5010142071 Applications

Used in high-speed data transmission systems
Suitable for compact electronic device designs
Applied in shielded interconnect applications
Ideal for surface mount assembly processes

5010142071 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions on this connector?

What is the mounting type?

Surface Mount, Right Angle

What is the termination method?

Solder

What is the contact finish?

Gold

What are the features of this connector?

Board Guide, Shielded

What is the connector type?

Cradlecon

What is the connector style?

Plug
