| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,584 pcs
|
7584 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
1,180 pcs
|
1180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
309 pcs
|
309 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
309 pcs
|
309 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Tape & Reel |

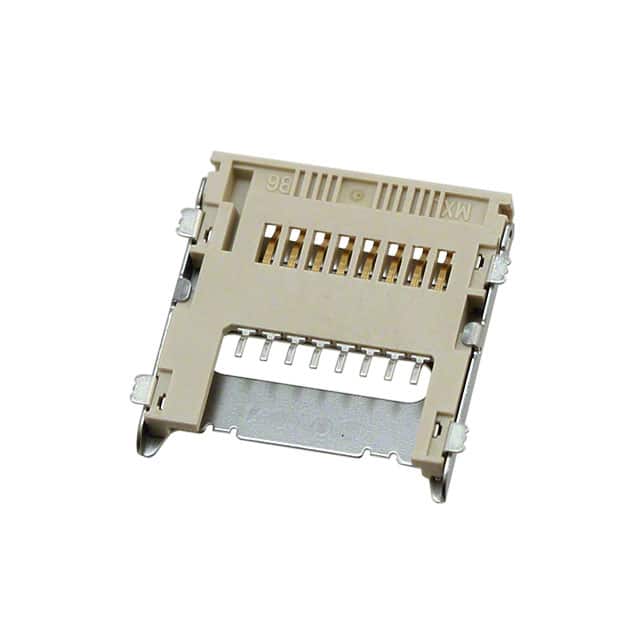

The Molex 5009010801 is a microSD card connector designed for secure digital memory card applications. It features a hinged lid insertion and removal method, providing reliable card retention and easy access. The connector offers 8 positions and is configured for surface mount, right angle mounting, making it suitable for compact PCB layouts.
This connector includes an integrated ejector mechanism and is designed with a normal, standard-top mounting feature. The contact finish is gold with a thickness of 20.0 microinches (0.51 micrometers), ensuring reliable electrical connections over repeated insertion cycles. The height above board is 1.92 mm, allowing for low-profile designs.
Typical applications include portable electronics, consumer devices, and embedded systems requiring microSD card connectivity. The surface mount package supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.10 | $4.10 |
| 10+ | $3.48 | $3.48 |
| 25+ | $3.26 | $3.26 |
| 50+ | $3.11 | $3.11 |
| 100+ | $2.96 | $2.96 |
| 250+ | $2.77 | $2.77 |
| 500+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector accepts Secure Digital - microSD cards.
The connector has 8 positions.
The mounting type is Surface Mount, Right Angle.
The contact finish is Gold with a thickness of 20.0 microinches (0.51 micrometers).
Yes, the connector type is Connector and Ejector.
The height above board is 1.92 mm (0.076 inches).
