| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,828 pcs
|
16828 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

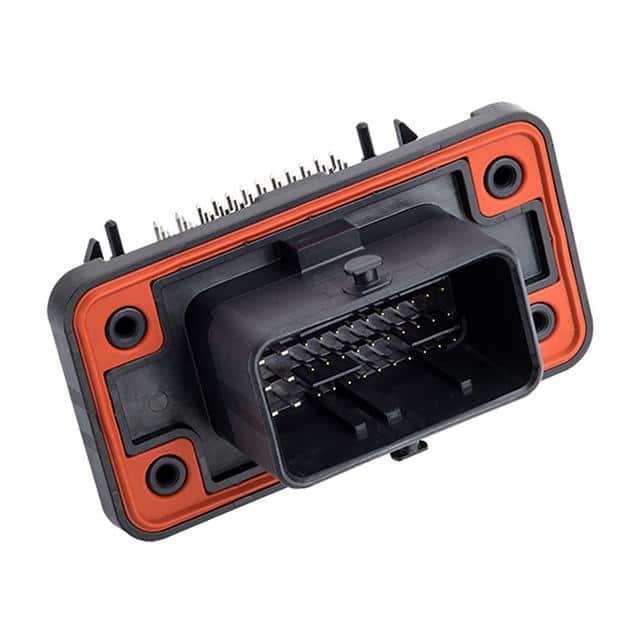

The Molex 5007621001 is a 48-position (40 signal + 8 power) 4-row right angle shrouded header connector designed for board-to-cable/wire applications. It features a 4-wall shroud for protection and alignment.
The connector offers a voltage rating of 14VDC and an operating temperature range of -40°C to 125°C. The contacts are made of copper alloy with a tin finish, and the insulator is black glass-filled PBT with a UL94 V-0 flammability rating. The insulation height is 43.18mm and contact length is 3.50mm.
It supports panel mount and through-hole mounting with right angle orientation, terminated via solder. Additional features include board guide and board lock for secure attachment.
This header is suitable for automotive and industrial applications requiring a high-density power and signal interface. The shrouded design provides mating alignment and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.73 | $10.73 |
| 10+ | $9.12 | $9.12 |
| 25+ | $8.55 | $8.55 |
| 80+ | $7.50 | $7.50 |
| 240+ | $6.95 | $6.95 |
| 560+ | $6.86 | $6.86 |
| 1,040+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions total, comprising 40 signal and 8 power contacts.
14VDC.
Panel mount, through hole, and right angle orientation.
-40°C to 125°C.
Contacts are copper alloy with tin finish; insulator is black glass-filled PBT with UL94 V-0 rating.
Yes, it features a 4-wall shroud.
Board guide and board lock for alignment and retention.
