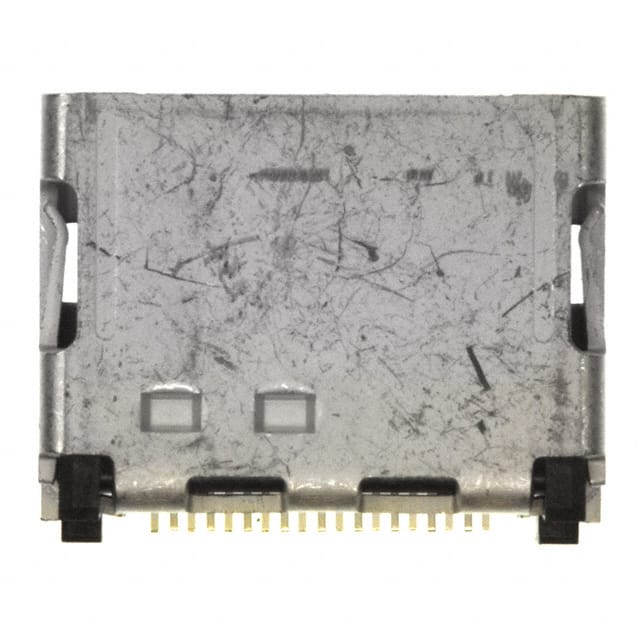

5002541927 HDMI receptacle connector by Molex with 19 positions, surface mount right angle termination, and shielded design. Rated for 0.5A and 40V.
Mfr Part #:

5002541927

Available from 1 distributors
Mfr Name: Molex
Molex
HDMI receptacle connector by Molex with 19 positions, surface mount right angle termination, and shielded design. Rated for 0.5A and 40V.
✓ Total Stock: 500 pcs
$ Price Range: $2.60

5002541927 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5002541927 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Gender
Lead Style
Mounting Feature
Mounting Type
Number of Contacts
Number of Ports
Operating Temperature
Shielding
Tape & Reel
Termination
Termination Style
Voltage
View Similar Products (0)

5002541927 Description

Short technical summary and product information.

The Molex 5002541927 is a 19-position HDMI receptacle connector designed for surface mount, right angle mounting. It features a horizontal orientation and solder termination. The connector is shielded for EMI protection. Electrical ratings include 0.5A current and 40VAC/DC voltage. Operating temperature range is -20°C to 85°C. This single-port connector is suitable for HDMI interface applications in consumer electronics and industrial equipment. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).

5002541927 Quick Information

Product Type: HDMI Receptacle Connector
Series: 500254
Canonical Name: HDMI Receptacle Connector, 19 Position, Surface Mount, Right Angle, Solder
Subcategory: HDMI Connector Assemblies

5002541927 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5002541927 Estimated Pricing

Qty Low High
3,000+ $2.60 $2.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

5002541927 Features

  • 19-position HDMI receptacle connector.
  • Surface mount, right angle mounting.
  • Shielded for EMI protection.
  • Rated for 0.5A and 40V.
  • Operating temperature -20°C to 85°C.

5002541927 Applications

  • Used in HDMI interface applications.
  • Suitable for consumer electronics.
  • Ideal for industrial equipment.
  • Single-port design for compact devices.

5002541927 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5002541927 have?

19 positions.

What is the current rating of the Molex 5002541927?

0.5 A per contact.

What is the voltage rating of the Molex 5002541927?

40 VAC/DC.

What is the mounting type of the Molex 5002541927?

Surface mount, right angle with solder termination.

Is the connector shielded?

Yes, it is shielded.

What is the operating temperature range?

-20°C to 85°C.

What is the gender of the connector?

Receptacle.
