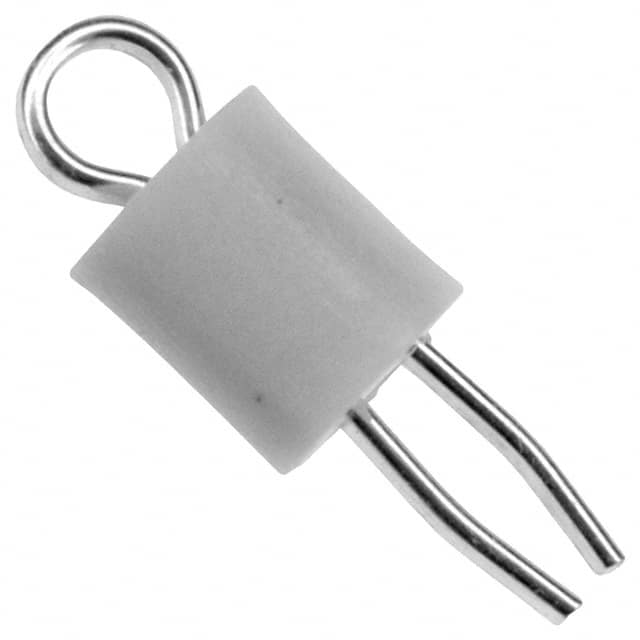

5002 The Keystone Electronics 5002 is a miniature, white PC test point designed for through-hole mounting. It features a Nylon 46 base and silver plating.
Mfr Part #:

5002

Available from 3 distributors
Mfr Name: Keystone Electronics
Keystone Electronics
The Keystone Electronics 5002 is a miniature, white PC test point designed for through-hole mounting. It features a Nylon 46 base and silver plating.
✓ Total Stock: 75 pcs
$ Price Range: $0.99

5002 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Hole Diameter
Material
Mounting Hole Diameter
Mounting Type
Plating
Terminal
Type
View Similar Products (0)

5002 Description

Short technical summary and product information.

The Keystone Electronics 5002 is a miniature test point with a white color for easy identification. It is designed for through-hole mounting on PC boards.



The terminal is constructed from phosphor bronze with silver plating, measuring 0.015" x 0.032". The base is made of Nylon 46, rated UL 94V-0, and suitable for high-temperature applications like reflow soldering. The mounting hole diameter is 0.040" (1.02mm).



This test point is suitable for reliable production testing and field service troubleshooting. Its compact size and snap-fit mounting provide positive retention for wave soldering. The wire form loop ensures a safe, non-slip testing connection for various test probes and clips.

5002 Quick Information

Product Type: Test Point
Canonical Name: Keystone Electronics 5002 PC Test Point
Subcategory: Test Points

5002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5002 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

5002 Features

  • Miniature white PC test point.
  • Through-hole mounting type.
  • Silver-plated phosphor bronze terminal.
  • Nylon 46 base material.
  • 0.040 inch mounting hole diameter.

5002 Applications

  • Ideal for production testing.
  • Useful for field service troubleshooting.
  • Suitable for high-density packaging.
  • Practical replacement for wire-wrap posts.

5002 FAQs

5 frequently asked questions generated from this part’s specifications.
What type of mounting does the Keystone Electronics 5002 test point use?

The Keystone Electronics 5002 test point uses through-hole mounting.

What is the terminal material and plating for the 5002 test point?

The terminal is made of phosphor bronze with silver plating.

What is the base material of the Keystone 5002 test point?

The base material is Nylon 46, UL 94V-0 rated.

What is the mounting hole diameter for the 5002 test point?

The mounting hole diameter is 0.040 inches (1.02mm).

What is the color of the Keystone Electronics 5002 test point?

The Keystone Electronics 5002 test point is white.
