| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color - Resin | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Material - Metal | |
| Material - Plating Mating | |
| Material - Plating Termination | |
| Mounting Feature | |
| Mounting Type | |
| Net Weight | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| PC Tail Length | |
| PCB Thickness Recommended | |
| Packaging Type | |
| Pitch | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage |

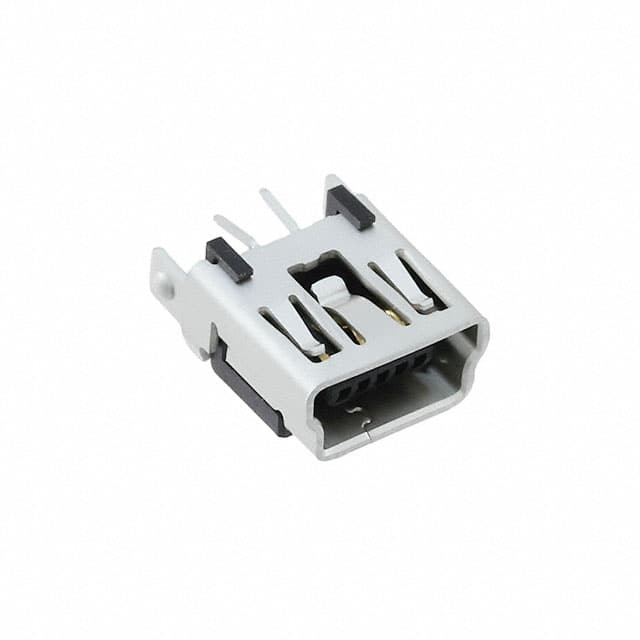

The Molex 5000750517 is a USB On-The-Go (OTG) Mini-B receptacle designed for wire-to-board applications. It features 5 contacts in a single row configuration with a vertical orientation through hole mounting style. The connector is shielded and includes PCB locator and retention features for reliable board assembly.
Rated for 1 A maximum per contact and 30 V AC (RMS)/DC, the receptacle operates over a temperature range of -40 to +85 °C. The mating interface uses a 0.80 mm pitch, and the termination tails are 2.00 mm long. The contacts are made of copper alloy with gold plating on the mating interface and tin on the termination tails.
Packaged in a tray, this part is RoHS compliant and REACH SVHC not contained. It is not low-halogen. The product is part of the Molex 500075 series and mates with Molex 59204 mini-B cable assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.18 | $6.18 |
| 10+ | $5.41 | $5.41 |
| 20+ | $4.80 | $4.80 |
| 50+ | $4.68 | $4.68 |
| 100+ | $4.50 | $4.50 |
| 200+ | $4.20 | $4.20 |
| 500+ | $4.04 | $4.04 |
| 1,000+ | $3.88 | $3.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current per contact is 1.0 A.
The maximum voltage is 30 V AC (RMS)/DC.
It uses through hole mounting with a vertical orientation.
Yes, it features a full shield and is shielded.
The mating interface pitch is 0.80 mm, and the termination interface pitch is also 0.80 mm.
The operating temperature range is -40 to +85 °C.
