| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
296 pcs
|
296 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Finished Hole Diameter | |
| Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| PCB Hole Diameter | |
| Pitch | |
| Shield Material | |
| Termination | |
| Termination Style |

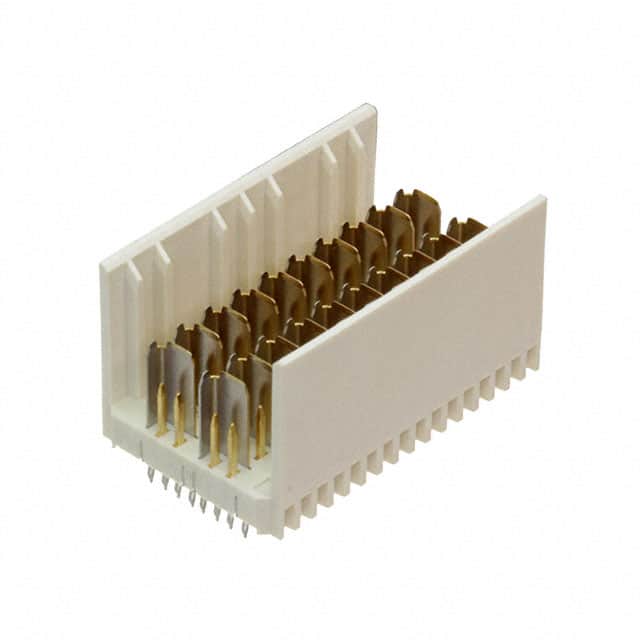

The Edac 500-040-231-C01 is a ZD connector designed for hard metric backplane applications. It features a 40-position, 4-row arrangement with a 2.50mm pitch. The connector uses a through hole press-fit termination, providing a reliable connection without soldering. The housing is made of LCP+30% glass reinforced material, rated UL94V-0 for flammability. Contacts are phosphor bronze with gold flash plating on the mating area and matte tin plating on the solder tails over nickel underplate. The shield is phosphor bronze with nickel plating. This connector is RoHS3 compliant per EU Directive 2011/65/EU. It is suitable for high-density interconnection in telecommunications, data centers, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1,584+ | $2.09 | $2.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.50 mm (0.098 inches).
Through hole with press-fit termination.
4 rows.
Gold flash on the contact area.
