| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,387 pcs
|
2387 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
460 pcs
|
460 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Style | |
| Tape & Reel | |
| Termination Style |

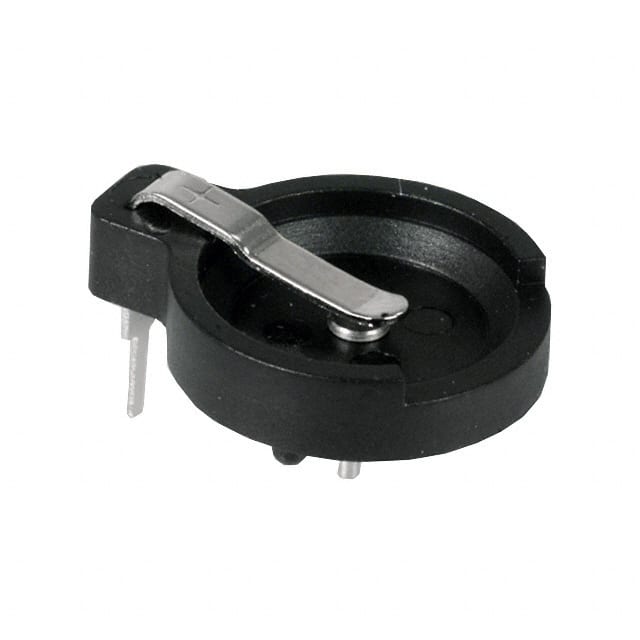

The Keystone 500 is a through-hole coin cell holder designed for 12mm diameter batteries. It accommodates single cells from the 1216, 1220, and 1225 series. The holder features an open construction with secure spring tension contacts for low contact resistance. The base is made of High Temperature Nylon 46, rated UL 94V-0, ensuring flame retardancy and resistance to industrial solvents. Contacts are phosphor bronze with flash gold plating for reliable conductivity. The operating temperature range spans -50°C to 145°C, making it suitable for harsh environments. Typical applications include computer memory backup, telecommunications, and industrial security systems. The part mounts via through-hole PCB with PC pin terminals, with a height above board of 4.57mm (0.180 inches). A battery release mechanism is included for easy battery removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $1.02 | $1.02 |
| 25+ | $0.95 | $0.95 |
| 100+ | $0.85 | $0.85 |
| 500+ | $0.83 | $0.83 |
| 1,000+ | $0.76 | $0.76 |
| 2,500+ | $0.66 | $0.66 |
| 5,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to 145°C.
RoHS3 compliant (unverified).
12mm coin cells from series 1216, 1220, and 1225.
High Temperature Nylon 46, UL 94V-0.
Phosphor Bronze with flash gold plating.
4.57mm (0.180 inches).
PC Pin.
