| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connecting Thread Standard | |
| DNV GL Certificate | |
| Gland Body Material | |
| Includes | |
| Ingress Protection | |
| Lamellar Insert Material | |
| Material | |
| O-Ring Material | |
| Operating Temperature | |
| Outside Cable Diameter (Max) | |
| Outside Cable Diameter (Min) | |
| Pressure Rating | |
| Properties | |
| Protection Grade | |
| Sealing Ring Material | |
| Standard Package Quantity | |
| Temperature Range (Dynamic) | |
| Temperature Range (Static Short Term) | |
| Test Standard | |
| Thread Length | |
| Thread Size | |
| Type | |
| UL/CSA File | |
| VDE Licence |

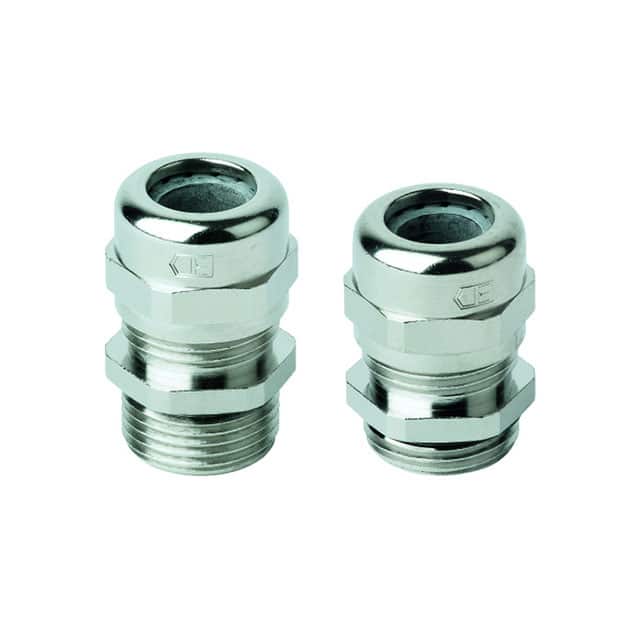

The Jacob GmbH 50.616 M/EMV is a PERFECT EMC cable gland designed for cables with shielding. It features a brass CuZn39Pb3 nickel-plated gland body and dome nut, a polyamide PA6 V-2 lamellar insert, a polychloroprene-nitrile rubber CR/NBR sealing ring, and a nitrile rubber NBR O-ring.
This cable gland has a metric M16x1.5 connecting thread per EN 60423 and accepts cables with an outside diameter of 5.00 mm to 9.00 mm. It provides IP68 and IP69K ingress protection and is rated for 5 bar pressure. The operating temperature range is -40°C to 100°C, with a dynamic range of -20°C to 100°C.
Key properties include integrated anchorage, protection against twisting, and a wide sealing and clamping range. It complies with EN 62444 and UL 514B standards and holds VDE licence 40020901, DNV GL Certificate TAE0000386, and UL/CSA File E140310. Standard package quantity is 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.52 | $5.52 |
| 10+ | $4.69 | $4.69 |
| 25+ | $4.40 | $4.40 |
| 50+ | $4.19 | $4.19 |
| 100+ | $3.99 | $3.99 |
| 300+ | $3.69 | $3.69 |
| 500+ | $3.56 | $3.56 |
| 1,000+ | $3.39 | $3.39 |
| 2,500+ | $3.18 | $3.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M16x1.5, metric per EN 60423.
It accepts cables with an outside diameter of 5.00 mm to 9.00 mm.
The gland is rated IP68 and IP69K, providing dust-tight and waterproof protection.
The operating temperature range is -40°C to 100°C, with a dynamic range of -20°C to 100°C.
The gland body and dome nut are brass CuZn39Pb3 nickel-plated, the lamellar insert is polyamide PA6 V-2, the sealing ring is polychloroprene-nitrile rubber CR/NBR, and the O-ring is nitrile rubber NBR.
RoHS status is listed as RoHS3 Compliant, but this information is unverified and should be confirmed with the manufacturer.
It holds VDE licence 40020901, DNV GL Certificate TAE0000386, and UL/CSA File E140310. It complies with EN 62444 and UL 514B.
