| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

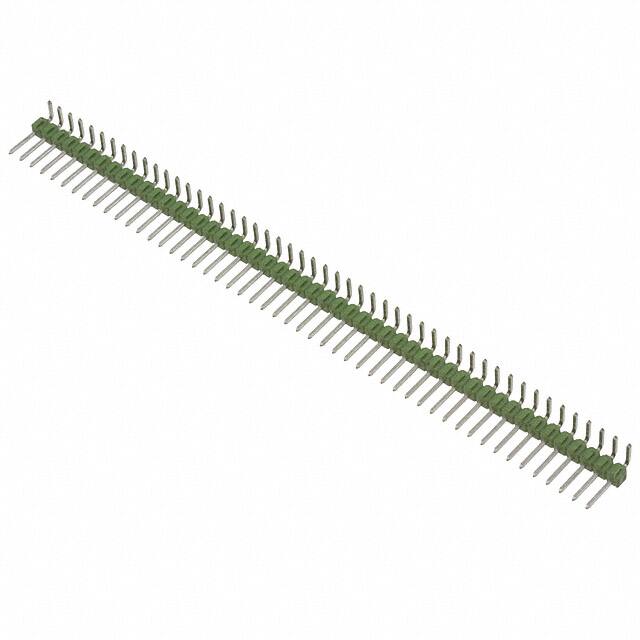

The 5-826947-0 is a 50-position unshrouded male pin header from TE Connectivity's AMPMODU II series. It features a single row of square brass (CuZn) contacts with a tin finish of 78.7µin (2.00µm). The connector uses a through-hole right-angle mounting style and solder termination, with a push-pull fastening mechanism.
Designed for board-to-board or cable applications, this header operates over a temperature range of -65°C to 105°C and is rated for 5A of current. The green PBT insulation has a UL94 V-0 flammability rating and an insulation height of 3.05mm. All 50 contact positions are loaded.
The AMPMODU II tin-plated headers underwent a product change notification updating the contact base material from phosphor bronze to brass, which is reflected in this part's construction. As with all TE Connectivity AMPMODU II headers, it supports robust and reliable interconnects in a variety of electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.66 | $5.66 |
| 10+ | $4.81 | $4.81 |
| 100+ | $4.54 | $4.54 |
| 250+ | $3.93 | $3.93 |
| 500+ | $3.39 | $3.39 |
| 2,500+ | $3.38 | $3.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 50 positions, all loaded in a single row.
The current rating is 5A.
Mounting type is through hole, right angle.
