| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
850 pcs
|
850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

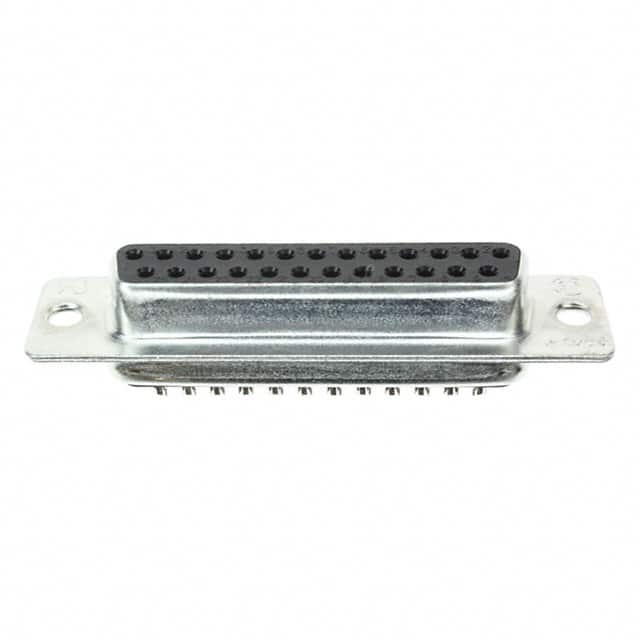

The TE Connectivity 5-747913-2 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series. It has a DB-3 shell size with 2 rows of female sockets, designed for free hanging (in-line) mounting. The termination method is solder cup, allowing reliable wire connections. The shell is made of steel with tin plating, and the contacts are gold-plated with a thickness of 0.203µm (8µin) for corrosion resistance and reliable signal integrity. The connector is rated for a current of 3A per contact and the insulator material meets UL94 V-0 flammability rating. The flange feature is housing/shell unthreaded. This connector is suitable for cable-to-cable or cable-to-panel applications in data communication, industrial control, and computer peripheral equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.84 | $4.84 |
| 10+ | $4.52 | $4.52 |
| 25+ | $4.29 | $4.29 |
| 50+ | $4.16 | $4.16 |
| 100+ | $4.03 | $4.03 |
| 250+ | $3.87 | $3.87 |
| 500+ | $3.79 | $3.79 |
| 1,000+ | $3.78 | $3.78 |
| 2,500+ | $3.68 | $3.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
3A per contact.
Free hanging (in-line).
Gold.
Steel, tin plated.
D-Sub.
AMPLIMITE HD-20.
