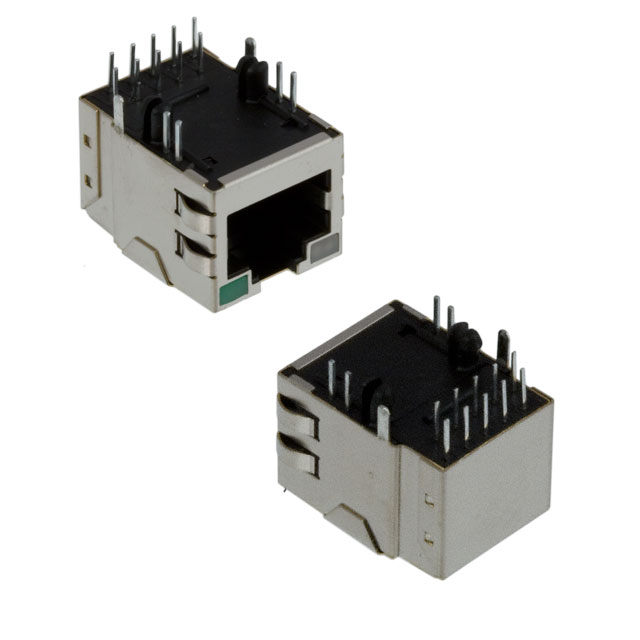

5-6605809-9 TE Connectivity 5-6605809-9 is a 1-port RJ45 jack with integrated magnetics for 10/100/1000 Base-T applications. It features through hole mounting, right angle orientation, shielding with EMI finger, and yellow-green LED.
Mfr Part #:

5-6605809-9

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5-6605809-9 is a 1-port RJ45 jack with integrated magnetics for 10/100/1000 Base-T applications. It features through hole mounting, right angle orientation, shielding with EMI finger, and yellow-green LED.
✓ Total Stock: 315 pcs

5-6605809-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
315 pcs
On Request
315 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-6605809-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Termination
View Similar Products (0)

5-6605809-9 Description

Short technical summary and product information.

The TE Connectivity 5-6605809-9 is a 1-port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. It features a through hole mounting style with solder termination and a 90° right angle orientation with tab up. The connector is shielded with an EMI finger for enhanced electromagnetic interference protection and includes a board lock for secure PCB attachment and decoupling capacitance for signal integrity.



The jack has 8 cores per port with phosphor bronze contacts finished in gold for reliable connectivity. It includes a yellow-green LED for status indication. The operating temperature range is 0°C to 70°C, and the height above board is 14.1 mm. This component is suitable for networking equipment such as routers, switches, and industrial control interfaces requiring integrated magnetics.

5-6605809-9 Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: RJ45 Connector Jack with Magnetics, 1 Port, Through Hole, Shielded
Subcategory: Modular Connector Jacks With Magnetics

5-6605809-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-6605809-9 Features

  • 1-port RJ45 jack with integrated magnetics.
  • Supports 10/100/1000 Base-T Ethernet.
  • Through hole mounting with right angle orientation.
  • Shielded with EMI finger for noise reduction.
  • Includes board lock and decoupling capacitance.

5-6605809-9 Applications

  • Used in Ethernet network interface cards.
  • Ideal for industrial control equipment.
  • Suitable for data communication modules.
  • Common in router and switch designs.

5-6605809-9 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type?

RJ45.

How many ports does the connector have?

1 port.

How many positions does the connector have?

8 positions (cores per jack).

What is the mounting type?

Through hole.

Is the connector shielded?

Yes, shielded with EMI finger.

What is the operating temperature range?

0°C to 70°C.

What applications is this connector suitable for?

10/100/1000 Base-T and AutoMDIX.
