| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

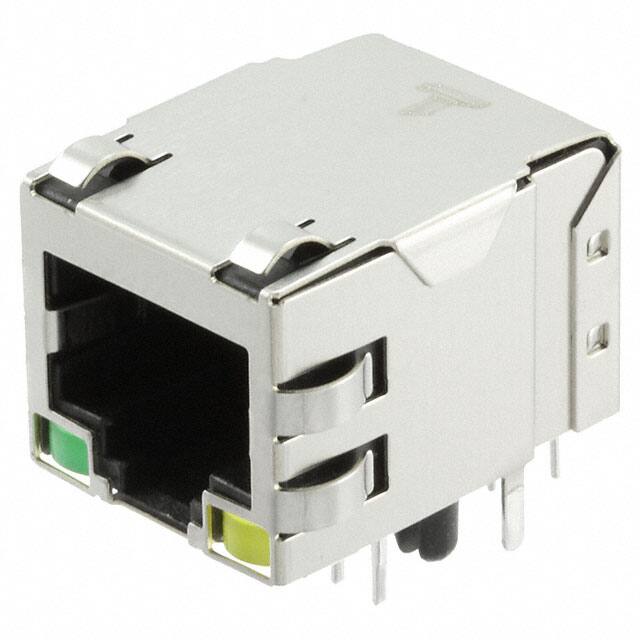

The 5-6605443-1 from TRP Connector B.V. is a modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a single RJ45 port with six cores per jack, supporting AutoMDIX for automatic crossover detection.
This connector is through-hole mounted with a right-angle (90°) orientation and a downward tab direction. It includes a board lock feature for secure attachment to the PCB. The shielded design with an EMI finger provides electromagnetic interference protection.
The connector has a green-yellow LED indicator for link/activity status. Contacts are gold-plated phosphor bronze, ensuring reliable connectivity. The operating temperature range is -40°C to 85°C, suitable for industrial environments.
With a height above board of 0.555 inches (14.10 mm), this component is suitable for space-constrained designs. It is RoHS3 compliant and REACH unaffected, though compliance is unverified. The part is used in networking equipment, routers, switches, and other Ethernet-connected devices.
Through hole mounting with right-angle (90°) orientation.
It supports 10/100 Base-T with AutoMDIX.
-40°C to 85°C.
Yes, it has a green-yellow LED for link/activity status.
Yes, it is shielded with an EMI finger.
Phosphor bronze contacts with gold finish.
0.555 inches (14.10mm).
