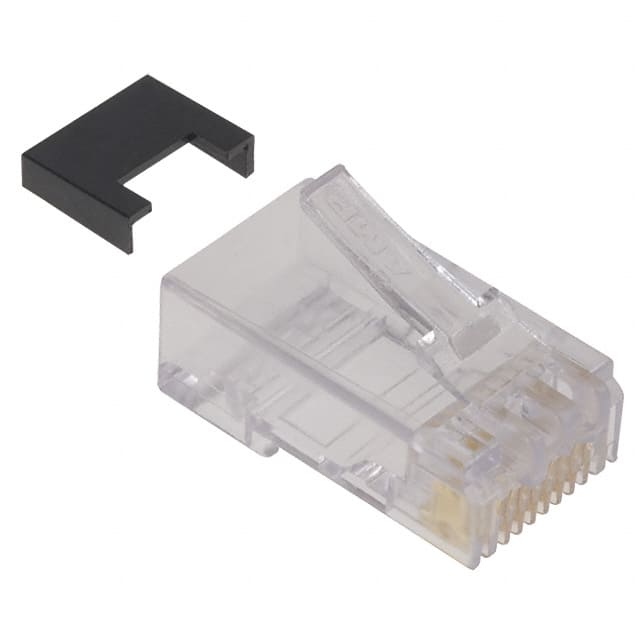

5-569278-3 Cat5e unshielded modular plug (RJ45) with 8 positions, IDC termination, for round solid cable. Clear translucent polycarbonate housing.
Mfr Part #:

5-569278-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Cat5e unshielded modular plug (RJ45) with 8 positions, IDC termination, for round solid cable. Clear translucent polycarbonate housing.
✓ Total Stock: 137 pcs

5-569278-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
137 pcs
On Request
137 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-569278-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Type
Color
Conductor Type
Connector Type
Contact Base Material
Housing Material
Length
Number of Positions
Ratings
Shielding
Tape & Reel
Termination
UL Flammability Rating
View Similar Products (0)

5-569278-3 Description

Short technical summary and product information.

The TE Connectivity 5-569278-3 is a Cat5e rated unshielded modular plug (RJ45) with 8 positions (8p8c). It features IDC termination for solid conductors (24-28 AWG) and is designed for round cable with a diameter range of 4.83-5.08 mm. The plug has a standard latch, is not keyed, and uses phosphor bronze contacts with gold plating on the mating area and gold flash over nickel on solder tails. The housing is made of polycarbonate GF with UL 94V-2 flammability rating. This plug is suitable for Ethernet applications requiring Cat5e performance. It is RoHS compliant and ELV compliant. Packaging is in boxes of 100 pieces.

5-569278-3 Quick Information

Product Type: Modular Connector Plug
Canonical Name: TE Connectivity 5-569278-3 Cat5e Unshielded Modular Plug, 8p8c, IDC Termination
Subcategory: RJ45 Plug

5-569278-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-569278-3 Features

  • Cat5e rated for Ethernet applications.
  • Unshielded design for cost-effective installations.
  • IDC termination for solid conductors.
  • Gold-plated contacts for reliable connectivity.
  • Clear translucent housing for visual inspection.

5-569278-3 Applications

  • Used in structured cabling for data networks.
  • Ideal for patch cable assembly.
  • Suitable for Cat5e Ethernet connections.
  • Common in telecommunications and IT infrastructure.

5-569278-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this modular plug have?

8 positions (8p8c, RJ45 Ethernet).

Is this plug shielded?

No, it is unshielded.

What cable type is compatible?

Round cable with solid wires, conductor size 24-28 AWG, cable diameter 4.83-5.08 mm.

What termination method does it use?

IDC (Insulation Displacement Connection).

What is the performance rating?

Cat5e.

What is the contact plating?

Gold (50) on mating area, gold flash over nickel on solder tails.

What is the housing material and flammability rating?

Polycarbonate GF with UL 94V-2 rating.
