| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,430 pcs
|
2430 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

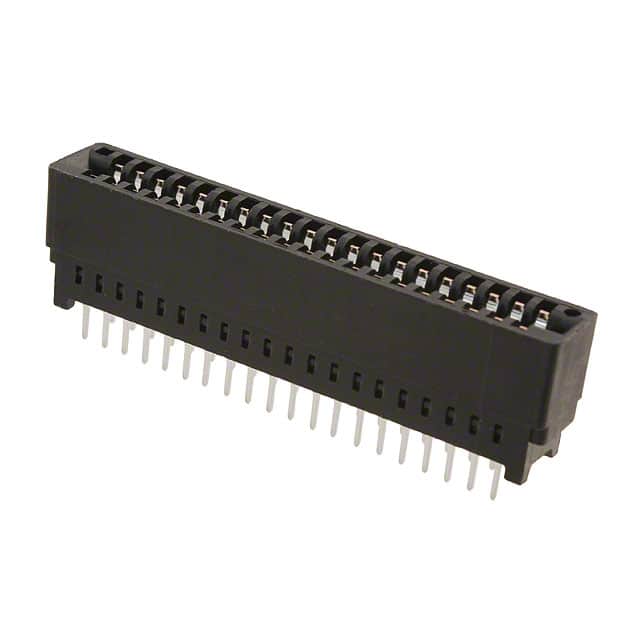

The TE Connectivity 5-5530843-4 is a dual female edgeboard connector designed for reliable card edge connections. It accommodates PCBs with a thickness range of 0.054" to 0.070" (1.37mm to 1.78mm) and offers 40 positions arranged on a standard 0.100" (2.54mm) pitch in a dual readout configuration. The connector uses through-hole mounting with solder termination for secure attachment to the motherboard.
Contacts are made from phosphor bronze with a 30µin (0.76µm) gold plating, ensuring excellent conductivity and corrosion resistance. The operating temperature range spans -55°C to 85°C, suitable for a wide range of environments. The black insulator is rated for wave soldering up to 265°C.
This part is EU RoHS compliant (Directive 2011/65/EU including Delegated Directive 2015/863/EU) and does not contain REACH SVHC as of the January 2023 ECHA candidate list. It is not halogen-free, containing bromine or chlorine above 900 ppm.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.54 | $4.54 |
| 10+ | $3.93 | $3.93 |
| 25+ | $3.77 | $3.77 |
| 100+ | $3.36 | $3.36 |
| 250+ | $3.20 | $3.20 |
| 486+ | $3.05 | $3.05 |
| 1,134+ | $2.93 | $2.93 |
| 2,592+ | $2.57 | $2.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm (0.100 inch).
Through hole.
Gold plating, 30µin (0.76µm) over phosphor bronze.
-55°C to 85°C.
0.054" to 0.070" (1.37mm to 1.78mm).
