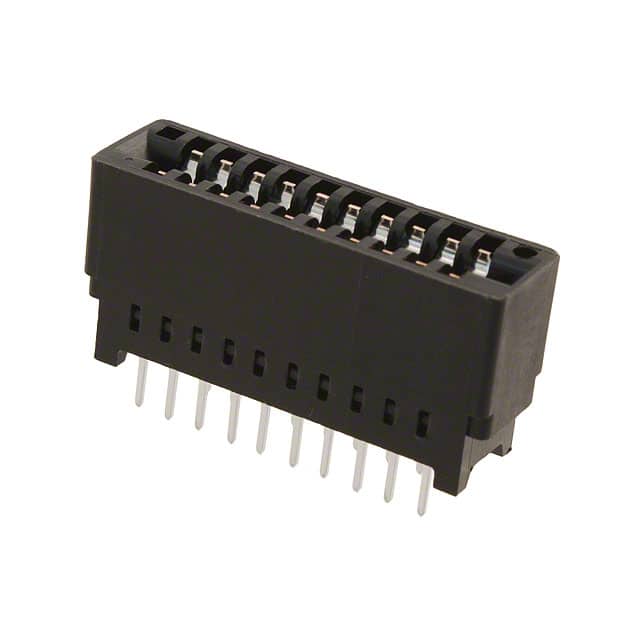

The TE Connectivity 5-5530843-0 is a Standard Edge II series card edge connector featuring 20 dual positions arranged in 2 rows on a 2.54mm centerline. The connector accepts a dual edge card with thickness ranging from 0.054" to 0.070" (1.37mm to 1.78mm). It offers a dual readout configuration and is rated for a contact current of 3 A and an operating voltage of 400 V.
The connector uses phosphor bronze contacts with gold plating (30.0µin / 0.76µm) for reliable signal integrity. The housing is made of black polyester GF material with a UL 94V-0 flammability rating, supporting an operating temperature range of -55°C to 85°C.
Termination is via through-hole solder with a post/tail length of 3.18 mm. The connector assembly includes mating alignment features. It is packaged in trays of 306 units and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.07 | $2.07 |
| 25+ | $1.87 | $1.87 |
| 100+ | $1.70 | $1.70 |
| 250+ | $1.60 | $1.60 |
| 600+ | $1.56 | $1.56 |
| 1,200+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch (centerline) is 2.54mm (0.100") with a row-to-row spacing of 4.85mm.
The contact current rating is 3 A and the operating voltage is 400 V.
Yes, it is RoHS3 compliant and always EU RoHS/ELV compliant per the datasheet.
It uses through-hole solder mounting with a termination post/tail length of 3.18 mm.
It accepts card thickness from 0.054" to 0.070" (1.37mm to 1.78mm).
