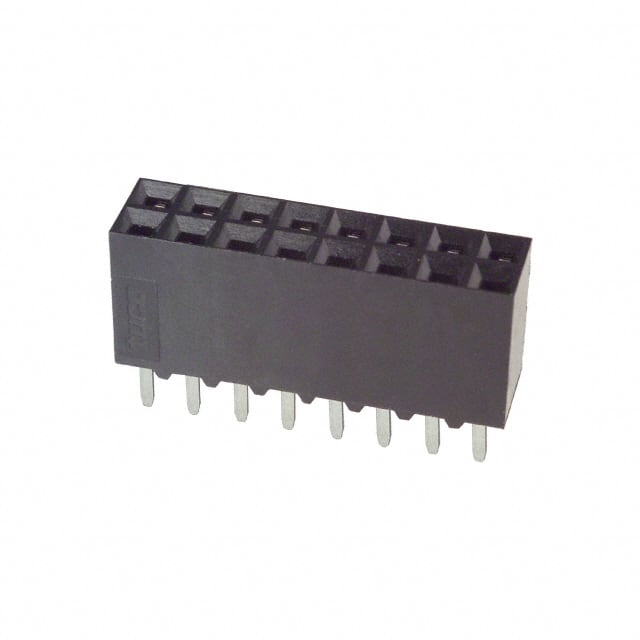

The TE Connectivity 5-534206-8 is a rectangular connector from the headers, receptacles, female sockets category. It features 16 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The connector is a through-hole receptacle with solder termination, designed for board-to-board or cable applications.
Contact type is female socket with a tin finish (0.76µm thickness). The insulation is black thermoplastic with a UL94 V-0 flammability rating. The insulation height is 8.13mm and the contact length is 2.92mm. Fastening type is push-pull.
This connector is rated for 2A current and can operate over a temperature range of -65°C to 125°C. All 16 positions are loaded. The connector is RoHS3 compliant and REACH unaffected according to available data, though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.47 | $4.47 |
| 10+ | $4.28 | $4.28 |
| 28+ | $3.42 | $3.42 |
| 112+ | $3.18 | $3.18 |
| 252+ | $3.00 | $3.00 |
| 504+ | $2.85 | $2.85 |
| 1,008+ | $2.60 | $2.60 |
| 2,520+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 16 positions in 2 rows, all loaded.
The pitch is 2.54mm and the row spacing is also 2.54mm.
The current rating is 2A.
The connector is through-hole mount with solder termination.
The operating temperature range is -65°C to 125°C.
The contacts have a tin finish with a thickness of 0.76µm (30.0µin).
