| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Length | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

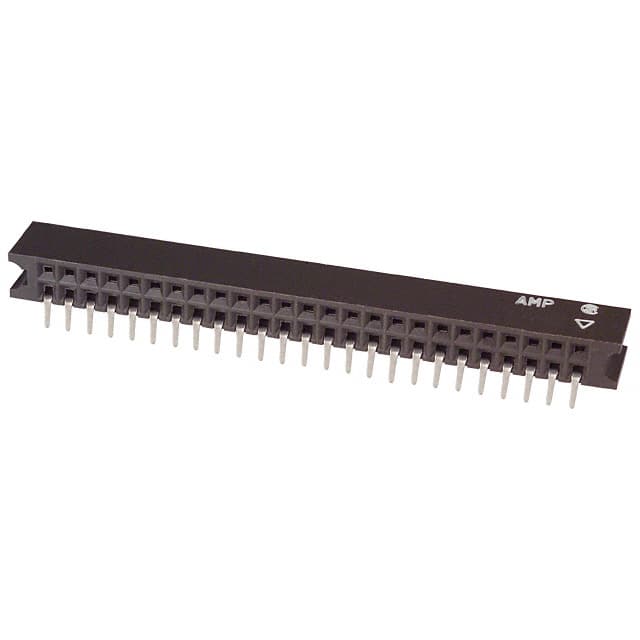

The TE Connectivity 5-532956-8 is a 50 position double row receptacle from the AMPMODU interconnection system. It features a through hole right angle mounting style with solder termination, making it suitable for board to board applications. The connector has a 2.54mm pitch and row spacing, with a push-pull fastening type and guide pin ears for alignment.
The housing is made of black glass-filled thermoplastic rated 94V-0. Contacts are phosphor bronze with duplex plating: 0.76µm gold on the contact area and matte tin on the solder area, with an overall nickel underplate. The insulation height is 6.05mm and the overall length is 70.05mm. All part numbers are RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.61 | $27.61 |
| 10+ | $26.33 | $26.33 |
| 30+ | $25.02 | $25.02 |
| 60+ | $17.06 | $17.06 |
| 120+ | $15.79 | $15.79 |
| 270+ | $15.25 | $15.25 |
| 510+ | $14.09 | $14.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions in a double row configuration.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole, right angle with solder termination.
Gold on contact area (0.76µm) and matte tin on solder area, with nickel underplate.
Yes, all part numbers are RoHS compliant per the datasheet.
