| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

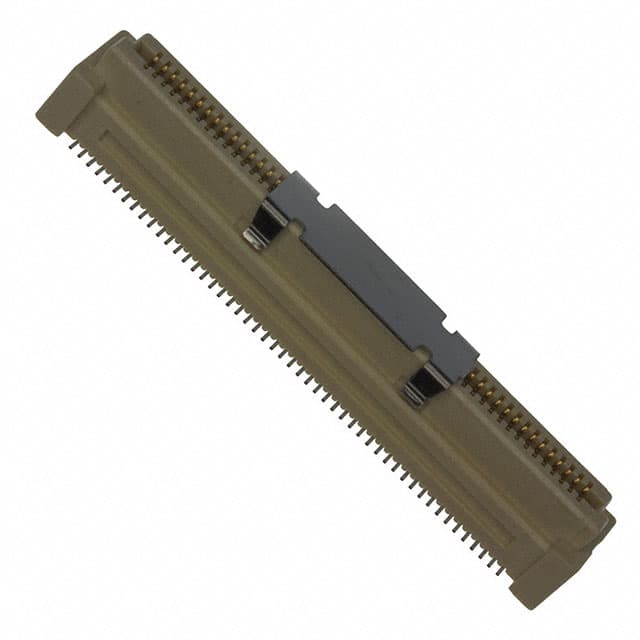

The TE Connectivity 5-5179180-4 is a 100 position receptacle connector featuring outer shroud contacts. It is designed for surface mount applications and has a 0.80mm pitch. The connector has 2 rows and includes a board guide feature for alignment during assembly.
The contact finish is gold with a thickness of 8.00µin (0.203µm). The height above the board is 7.75mm. This connector supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, making it suitable for mezzanine board-to-board applications.
The connector is RoHS3 compliant and REACH unaffected. The moisture sensitivity level is MSL 1, indicating unlimited floor life.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.85 | $11.85 |
| 10+ | $10.41 | $10.41 |
| 100+ | $9.93 | $9.93 |
| 250+ | $8.82 | $8.82 |
| 400+ | $8.06 | $8.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5-5179180-4 has 100 positions.
The pitch is 0.80mm.
The mounting type is surface mount.
The contact finish is gold with a thickness of 8.00µin (0.203µm).
The connector supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm.
Yes, it includes a board guide feature.
