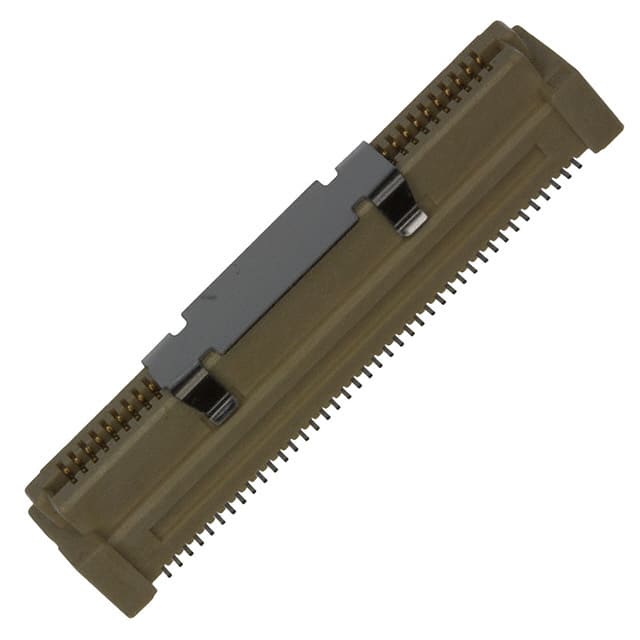

The TE Connectivity 5-5179180-3 is a Free Height series board-to-board receptacle connector designed for parallel stacking applications. It features 80 positions arranged in 2 rows with a 0.8mm pitch, enabling high-density interconnections. The connector is surface mount with vertical PCB orientation and supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm.
The contact system uses gold-plated copper alloy sockets with a contact mating area plating thickness of 0.2µm, ensuring reliable signal integrity. The housing is made of a matte finish material, likely liquid crystal polymer, and includes a board guide feature for alignment during assembly. Electrically, the connector is rated for 100 VAC operating voltage, 0.5A maximum current per contact, and has a dielectric withstanding voltage of 500 VAC. Insulation resistance is specified at 2 MΩ.
This connector is suitable for board-to-board interconnections in various electronic systems, particularly where space is limited and high pin counts are required. The surface mount package and vertical orientation facilitate automated assembly processes.
