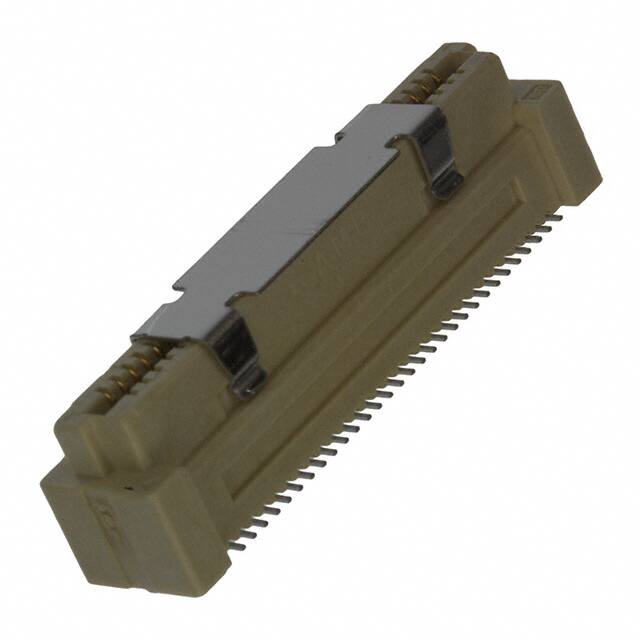

5-5179180-2 TE Connectivity's 5-5179180-2 is a 60-position receptacle connector with outer shroud contacts, surface mount design, and gold contact finish. It features a 0.80mm pitch and supports mated stacking heights from 9mm to 12mm.
Mfr Part #:

5-5179180-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity's 5-5179180-2 is a 60-position receptacle connector with outer shroud contacts, surface mount design, and gold contact finish. It features a 0.80mm pitch and supports mated stacking heights from 9mm to 12mm.
✓ Total Stock: 1,000 pcs
$ Price Range: $2.87 - $5.56

5-5179180-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-5179180-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Storage Temperature
Tape & Reel
View Similar Products (0)

5-5179180-2 Description

Short technical summary and product information.

The 5-5179180-2 from TE Connectivity is a 60-position receptacle connector designed for board-to-board mezzanine applications. It uses outer shroud contacts and has a pitch of 0.80mm, enabling high-density connection between parallel PCBs. The connector is surface mount terminated, with gold contact plating of 8.00µin thickness for reliable electrical performance.



The component features two rows of contacts and supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, providing flexibility in board spacing. A built-in board guide aids in alignment during assembly. The connector is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).

5-5179180-2 Quick Information

Product Type: Receptacle, Outer Shroud Contacts
Series: ITP
Canonical Name: TE Connectivity 5-5179180-2 60 Position Receptacle, Outer Shroud Contacts, Surface Mount
Subcategory: Board-to-Board Mezzanine Connector

5-5179180-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5-5179180-2 Estimated Pricing

Qty Low High
1+ $5.56 $5.56
10+ $4.81 $4.81
25+ $4.51 $4.51
50+ $4.29 $4.29
100+ $4.09 $4.09
250+ $3.83 $3.83
500+ $3.26 $3.26
1,000+ $3.06 $3.06
2,500+ $2.87 $2.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-5179180-2 Features

  • 60-position receptacle with outer shroud contacts.
  • 0.80mm pitch for high-density designs.
  • Surface mount termination for automated assembly.
  • Gold contact finish with 8µin thickness.
  • Supports mated stacking heights of 9-12mm.

5-5179180-2 Applications

  • Ideal for mezzanine board-to-board connections.
  • Suitable for compact electronic assemblies.
  • Used in applications requiring high-density interconnects.
  • Board guide aids alignment during assembly.

5-5179180-2 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the connector have?

60 positions.

What is the pitch of the connector?

0.80mm (0.031").

What is the mounting type?

Surface mount.

What is the contact finish?

Gold with 8.00µin (0.203µm) thickness.

What mated stacking heights are supported?

9mm, 10mm, 11mm, and 12mm.

Does the connector include a board guide?

Yes, it features a board guide.
