| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:30:16 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

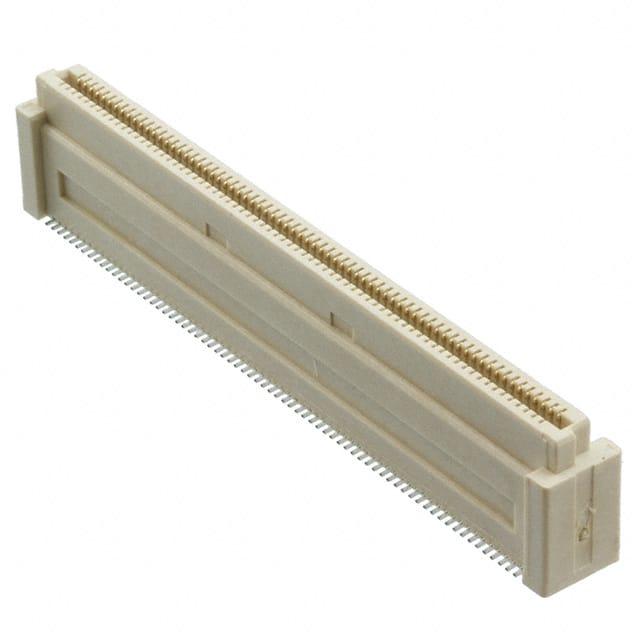

The TE Connectivity 5-5179010-6 is a high-density board-to-board receptacle connector designed for mezzanine applications. It features 140 positions arranged in 2 rows with a 0.8mm pitch, providing a compact interconnect solution for space-constrained designs.
The connector utilizes outer shroud contacts with a gold finish (8µin) for reliable signal integrity and corrosion resistance. It is surface mount compatible with a board guide feature to aid alignment during assembly. The connector has a height above board of 0.463 inches (11.75mm) and supports a mated stacking height of 13mm, making it suitable for parallel board stacking.
This component is part of TE's 0.8FH series and is RoHS compliant with an MSL of 1 (unlimited floor life). It is also REACH unaffected. The part is cross-referenced as DigiKey part number A115419-ND.
| Qty | Low | High |
|---|---|---|
| 700+ | $9.88 | $9.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions.
0.80mm.
Surface mount.
2 rows.
Gold, 8µin thickness.
13mm.
Yes, it features a board guide.
