| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | 1050 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

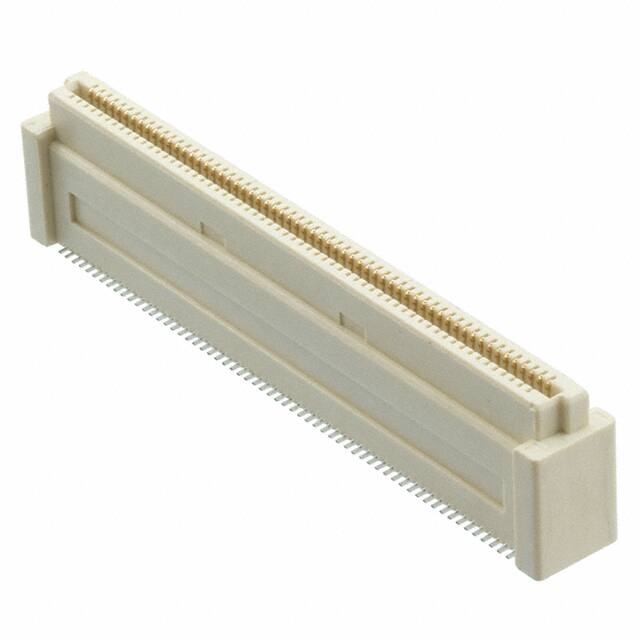

The TE Connectivity 5-5179010-5 is a 120 position receptacle outer shroud contacts connector designed for board-to-board mezzanine applications. It features a 0.8mm pitch and a 2-row configuration, providing a compact high-density interconnect solution.
This connector is surface mount mounted with a mated stacking height of 13mm and a height above board of 0.463 inches (11.75mm). The contacts are finished with 8.00 microinches of gold, ensuring reliable signal integrity and corrosion resistance.
A board guide feature aids in alignment during assembly. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life), though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.91 | $9.91 |
| 10+ | $8.08 | $8.08 |
| 25+ | $7.85 | $7.85 |
| 50+ | $7.48 | $7.48 |
| 100+ | $7.12 | $7.12 |
| 250+ | $6.71 | $6.71 |
| 450+ | $6.36 | $6.36 |
| 900+ | $5.65 | $5.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 120 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
The mounting type is Surface Mount.
The mated stacking height is 13mm.
The contact finish is Gold with a thickness of 8.00 microinches (0.203 micrometers).
