| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,473 pcs
|
1473 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

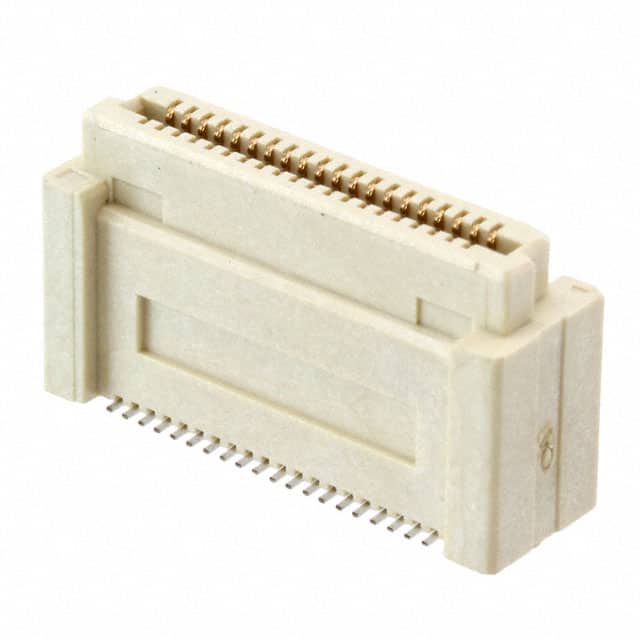

The TE Connectivity 5-5179010-1 is a 40 position receptacle connector designed for board-to-board mezzanine applications. It features outer shroud contacts and a 0.80mm pitch, making it suitable for high-density interconnects.
This connector has a mated stacking height of 13mm and a height above board of 0.463 inches (11.75mm). It is surface mount mounted and includes a board guide feature for alignment during assembly. The contacts are finished with 8.00 microinches of gold for reliable conductivity.
The connector has 2 rows of 20 positions each, providing a compact solution for parallel board stacking. It is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.28 | $3.28 |
| 10+ | $1.77 | $1.77 |
| 5,500+ | $1.60 | $1.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5-5179010-1 has 40 positions.
The pitch is 0.80mm.
The mounting type is Surface Mount.
The mated stacking height is 13mm.
The contact finish is Gold with a thickness of 8.00 microinches.
It has 2 rows.
