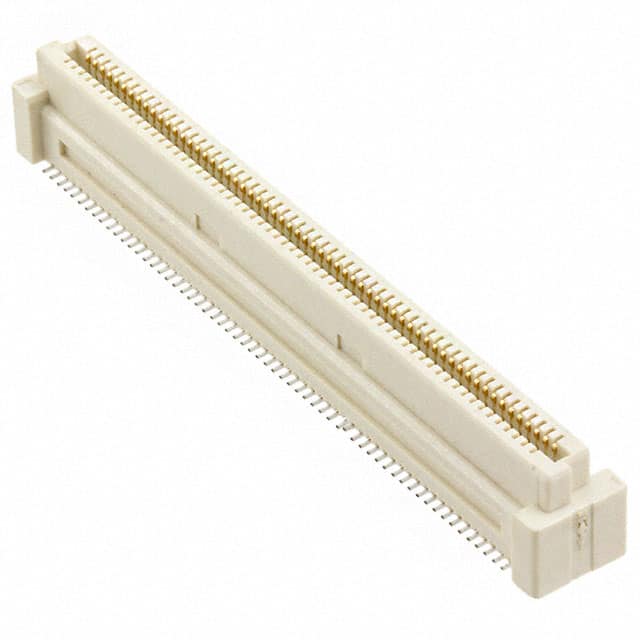

5-5179009-5 120 position receptacle connector with outer shroud contacts, 0.80mm pitch, surface mount, gold contact finish.
Mfr Part #:

5-5179009-5

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
120 position receptacle connector with outer shroud contacts, 0.80mm pitch, surface mount, gold contact finish.
✓ Total Stock: 5,317 pcs
$ Price Range: $6.39 - $10.52

5-5179009-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,130 pcs
On Request
5130 pcs On Request 1 On Request On Request On Request On Request On Request
Tokyo Device ✓
Non-Authorised Inventory information
187 pcs
On Request
187 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-5179009-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

5-5179009-5 Description

Short technical summary and product information.

The TE Connectivity 5-5179009-5 is a 120 position receptacle connector featuring outer shroud contacts. It has a 0.80mm pitch and 2 rows, designed for surface mount assembly. The contacts are finished with 8.00µin gold for reliable conductivity. The connector supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, making it suitable for various board-to-board spacing requirements. It includes a board guide feature to aid alignment during assembly. The height above board is 0.305 inches (7.75mm). This connector is part of TE's mezzanine connector family, ideal for high-density parallel PCB interconnections.

5-5179009-5 Quick Information

Product Type: Mezzanine Connector (Board-to-Board)
Series: 5-5179009
Canonical Name: Receptacle, Outer Shroud Contacts, 120 Position, 0.80mm Pitch, Surface Mount
Subcategory: Mezzanine Connector

5-5179009-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-5179009-5 Estimated Pricing

Qty Low High
1+ $10.52 $10.52
9+ $8.93 $8.93
27+ $8.37 $8.37
54+ $7.97 $7.97
108+ $7.63 $7.63
1,008+ $6.39 $6.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-5179009-5 Features

  • 120 position receptacle connector.
  • 0.80mm pitch for high density.
  • Surface mount for automated assembly.
  • Gold contact finish for reliability.
  • Supports 9mm to 12mm stacking heights.

5-5179009-5 Applications

  • Board-to-board stacking applications.
  • Mezzanine connector for parallel PCBs.
  • High-density interconnect designs.

5-5179009-5 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 5-5179009-5 have?

120 positions.

What is the pitch of this connector?

0.80mm.

What is the mounting type?

Surface mount.

What is the contact finish?

Gold, 8.00µin thickness.

What stacking heights are supported?

9mm, 10mm, 11mm, and 12mm.

Does the connector have any alignment features?

Yes, it includes a board guide.
