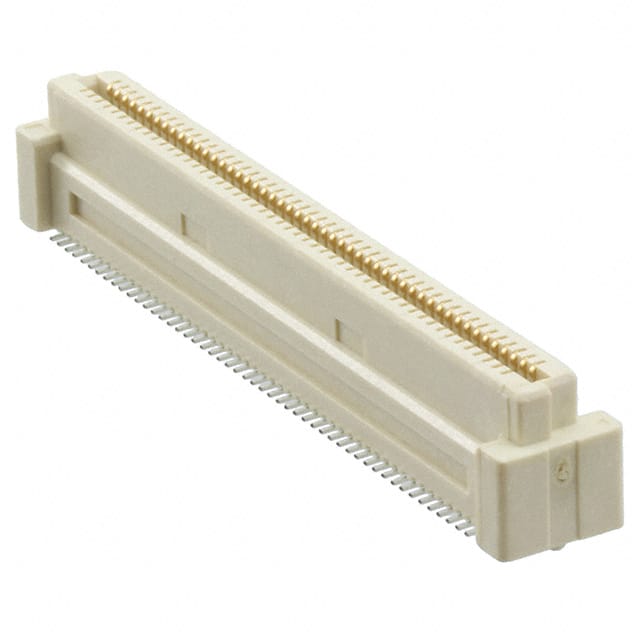

The TE Connectivity 5-5179009-4 is a 100 position receptacle connector from the Free Height (FH) series, designed for board-to-board mezzanine applications. It features a 0.8mm pitch and a 2-row configuration with outer shroud contacts. The connector is surface mount (SMT) with a vertical PCB mounting orientation.
Electrical ratings include a contact current rating of 0.5A and a voltage rating of 100VAC. The insulation resistance and dielectric withstanding voltage are both 500VAC. The operating temperature range is -40°C to 85°C.
The housing is made of LCP (Liquid Crystal Polymer) with a UL 94V-0 flammability rating. Contacts are beryllium copper with gold plating on the mating area (0.2µm) and tin over nickel on the solder tails. The connector includes a board guide feature and supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm. Packaging is in tubes of 10 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.75 | $5.75 |
| 10+ | $5.49 | $5.49 |
| 20+ | $5.08 | $5.08 |
| 50+ | $4.90 | $4.90 |
| 100+ | $4.66 | $4.66 |
| 200+ | $4.37 | $4.37 |
| 500+ | $4.16 | $4.16 |
| 1,000+ | $3.62 | $3.62 |
| 2,000+ | $3.39 | $3.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031 inches).
It has 100 positions arranged in 2 rows.
The contact current rating is 0.5A.
The voltage rating is 100VAC.
It uses surface mount (SMT) termination.
The operating temperature range is -40°C to 85°C.
The housing is LCP (Liquid Crystal Polymer) with a UL 94V-0 flammability rating.
